Cathodoluminescence Detectors


Delmic CL Detectors

Cathodoluminescence (CL) imaging is a high spatial resolution technique to obtain unique material information from the light emitted by samples in electron microscopy. By collecting and controlling photon signals, CL detectors make it possible to characterize a myriad of properties and explore nanoscale physics as never before.

Delmic provides three detector options for CL imaging, offering an extensive range of choice, customization, and system modularity to tailor instruments into specialized CL tools. The set is comprised of the SPARC Spectral, SPARC Compact, and JOLT.

Speed to Data

Rapidly acquire CL emission to begin exploring fundamental material properties faster.

Modular CL Designs

Completely define a specialized CL instrument and evaluate upgrade options.

CL Imaging Modes

Dive into the deep end of various phenomena like photon bunching, time decay dynamics, and polarization.

High Spatial Resolution

Subvert the diffraction limit of light to gain sample insights complementary to SEM.

See available configurations

Cathodoluminescence Detector Options

Delmic CL detectors ensure accurate and reliable measurements. Compatible with all kinds of scanning electron microscopes, these systems provide the most complete solution to various research challenges involving luminescent properties of a wide range of materials.

The SPARC Spectral is a premier CL system equipped with a spectrometer and designed to operate several advanced imaging modes: time-resolved, angle-resolved, hyperspectral, polarization-filtered, intensity, and lens scanning energy momentum imaging.

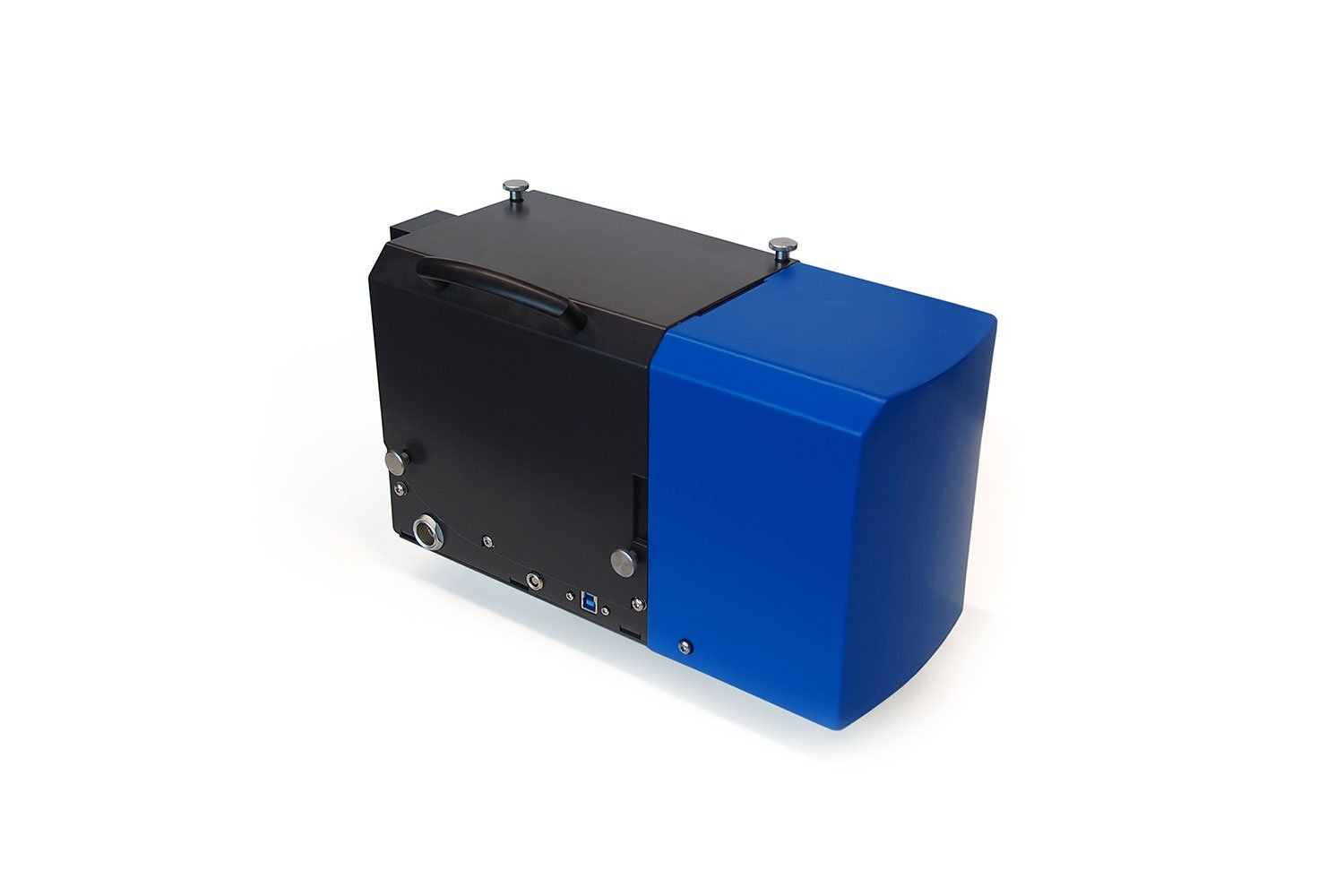

The SPARC Compact streamlines user accessibility for all kinds of CL applications into an easy to use, powerful RGB and panchromatic intensity mapping instrument. A field upgradeable design enables spectrometry and additional imaging modes.

The JOLT is a high-performance, budget-friendly CL detection system that distills the core aspects of intensity mapping of the SPARC systems into two simple variations of CL detection: a panchromatic version and an RGB color version.

Cl Intensity Visualization

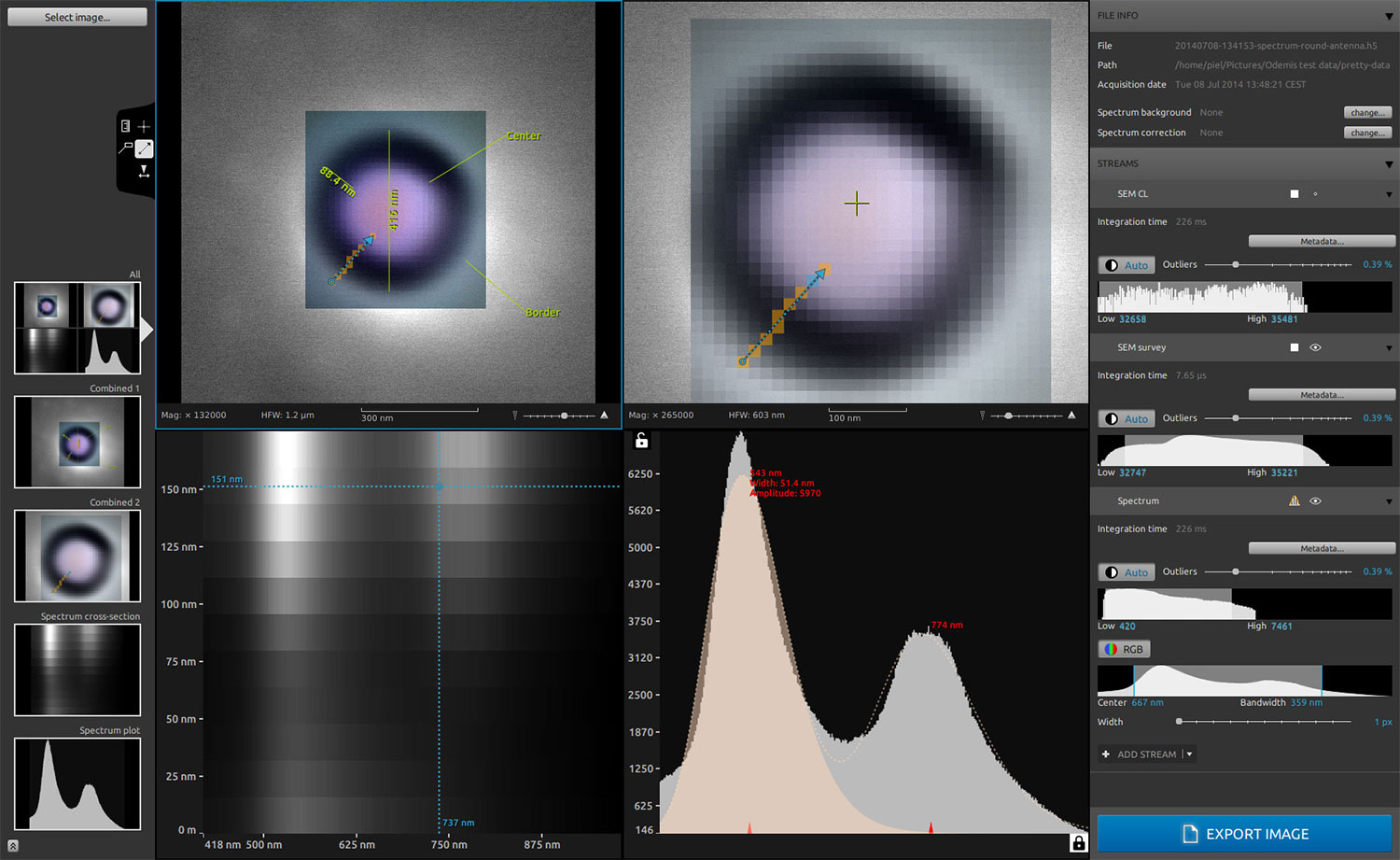

Odemis Software

The acquired datasets can be analyzed and compared in a quantitative manner with the aid of the open-source software ODEMIS. This software enables the determination of a variety of material properties, including composition, crystal structure, defects, optical modes, resonances, and electronic band gap, as well as the detection of trace elements or dopants.

Additionally, automated peak fitting, cross cutting, averaging, export functionality, and drift correction tools are provided to enhance the imaging workflows. Should the available tools not fully meet research requirements, users can leverage the Python scripting interface to create their own analysis algorithms. Moreover, further data processing is facilitated through the export of data to established analysis software packages such as MATLAB, Python, ImageJ, Photoshop, Origin, or Excel.

Knowledge base

Cathodoluminescence Application Notes

– Delmic –


Zircon (ZrSiO4) is a ubiquitous mineral in the earth’s crust. Because the…

– Delmic –

Rare-Earth Doped Materials

Rare earth metals represent a particular class of elements in the periodic…

– Delmic –

Development of novel UV LED technology using cathodoluminescence inspection

Light emitting diodes (LEDs) have developed into a mature and widely used…

– Delmic –

Imaging optical modes in semiconductor nanoparticles

Similar to their metallic counterparts, semiconductor nanoparticles and nanowires have the ability…

– Delmic –

Cathodoluminescence for bulk and nanostructured Gallium Nitride-based LED materials

Gallium Nitride (GaN) is a versatile wide-band gap semiconductor material and member…

– Delmic –

Cathodoluminescence On Unicellular Marine Organisms

The study of marine microbiology provides essential knowledge for understanding fundamental questions…
