In Situ TEM Solutions

in situ TEM holders & MEMS nano-chips

DENSSolutions in situ Solutions

DENSsolutions develops plug-and-play in situ TEM systems designed to transform conventional TEMs into multi-functional laboratories. Their solutions leverage the latest in MEMS technology, modular holder designs, powerful software, and compact accessories to deliver a user-friendly experience so you can focus on microscopy.

High Impact Results

Observe functional materials under conditions that mimic their real-world working environment

Stay In Focus

Lower drift and better Z-height stability allows your sample to stay in focus during rapid heating/cooling

Easy Sample Loading

The newly designed FIB stub workflow enables thinning and placement on the chip, all inside the FIB-SEM

Elemental Mapping

Easily obtain high-resolution EDS maps thanks to reduced infrared radiation and a highly stable holder

See available Solutions

In situ TEM Product Options

Selecting the right in situ system will greatly increase the experimental possibilities of your TEM experiments. DENSsolutions complete lineup of in situ TEM solutions provides precise, accurate, and reproducible stimuli without compromising microscope performance.

Liquid + Heating or Biasing: Stream is the number one platform for liquid phase experiments. Its patented Nano-Cell enables precise control of liquid flow and thickness while heating or biasing the sample.

Gas + Heating: Climate transforms the TEM into a Nano-Reactor capable of in situ and operando experiments. Continuously mix up to 3 gasses and water vapor at pressures up to 2 bar.

Heating: Wildfire enables dynamic thermal studies by providing stable and homogenous temperatures up to 1300°C with rapid heating and cooling rates.

Biasing + Heating: Lightning builds upon Wildfire’s capabilities by enabling electric fields up to 300 kV/cm at 900°C plus the ability to measure I-V response with pA current sensitivity.

All-inclusive Software

Impulse Software

Impulse software gives researchers complete control over stimuli applied within DENSsolutions in situ TEM systems. With Impulse, you can easily design your in situ experiment from your desk and store experiments so you can reliably reproduce results. While on the microscope, Impulse will automatically control the sample environment while you focus on the sample.

learn more

What is In Situ TEM ?

The limitations of conventional TEM

Conventional TEMs primarily act as an imaging tool to characterize structures of materials.

In the last few years, state-of-the-art TEMs have enabled atomic resolution imaging and analysis, which has been achieved through the use of image or probe aberration-corrected TEMs. The performance of these TEMs as an imaging tool has proven to be extremely valuable in identifying various material structures.

However, these conventional TEMs are still unable to support the whole research process. The reason is that conventional TEM is unable to replicate real-world environmental conditions (heating, gas, liquid, etc.) as the sample is always introduced into a static, high vacuum environment.

This fundamentally limits the value and obtainable benefits of a TEM.

The power of in situ TEM

Observing processes “on site” as they are occurring and under changing external stimuli is the paramount goal of in situ, time resolved techniques.

DENSsolutions utilizes MEMS devices, called Nano-Chips, to control the sample’s environmental surroundings and replicate real-life application conditions inside your TEM. The introduction of in situ capabilities into a TEM transforms the system from a static imaging tool into a multi-functional laboratory.

With these in situ microscopy solutions, researchers are now able to characterize structures, measure properties, evaluate performance, and optimize processes & synthesis – all in one system!

If you are interested in learning more about the possibilities of in situ TEM, please contact our applications experts using the form below.

Knowledge base

In Situ TEM Applications

– Webinar –

Observing the Dynamics of Electrochemically Active Matter With Liquid Electron Microscopy

Electrochemical Liquid Electron Microscopy enables the direct observation of…

– Webinar –

Expanding In Situ Studies Across Length Scales Using Electron and X-Ray Microscopy

During this webinar presentation, Dr. Schuster and Dr. Parker…

– Supplier Application Note –

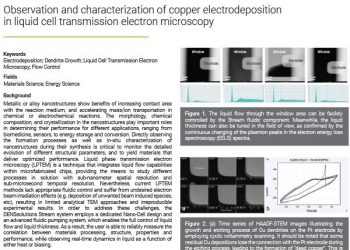

Observation and characterization of copper electrodeposition in liquid cell transmission electron microscopy

Metallic or alloy nanostructures show benefits of increasing contact…

– Supplier Application Note –

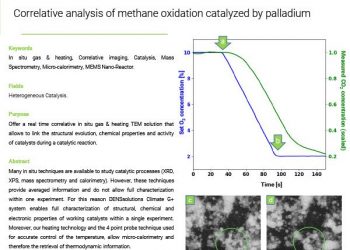

Correlative analysis of methane oxidation catalyzed by palladium

Many in situ techniques are available to study catalytic…

– Supplier Application Note –

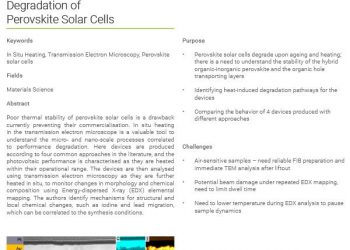

Temperature-induced Degradation of Perovskite Solar Cells

Poor thermal stability of perovskite solar cells is a…

– Supplier Application Note –

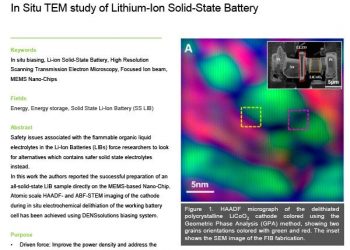

In Situ TEM study of Lithium-Ion Solid-State Battery

Safety issues associated with the flammable organic liquid electrolytes…
