Biolin QCM-D Software

QSoft Software

QSoft is the data acquisition software for QSense Explorer and QSense Analyzer systems, offering real-time QCM-D measurements with control over sensor settings, temperature, and liquid handling. It supports both manual and automated workflows with advanced tools for temperature ramping and sequence programming.

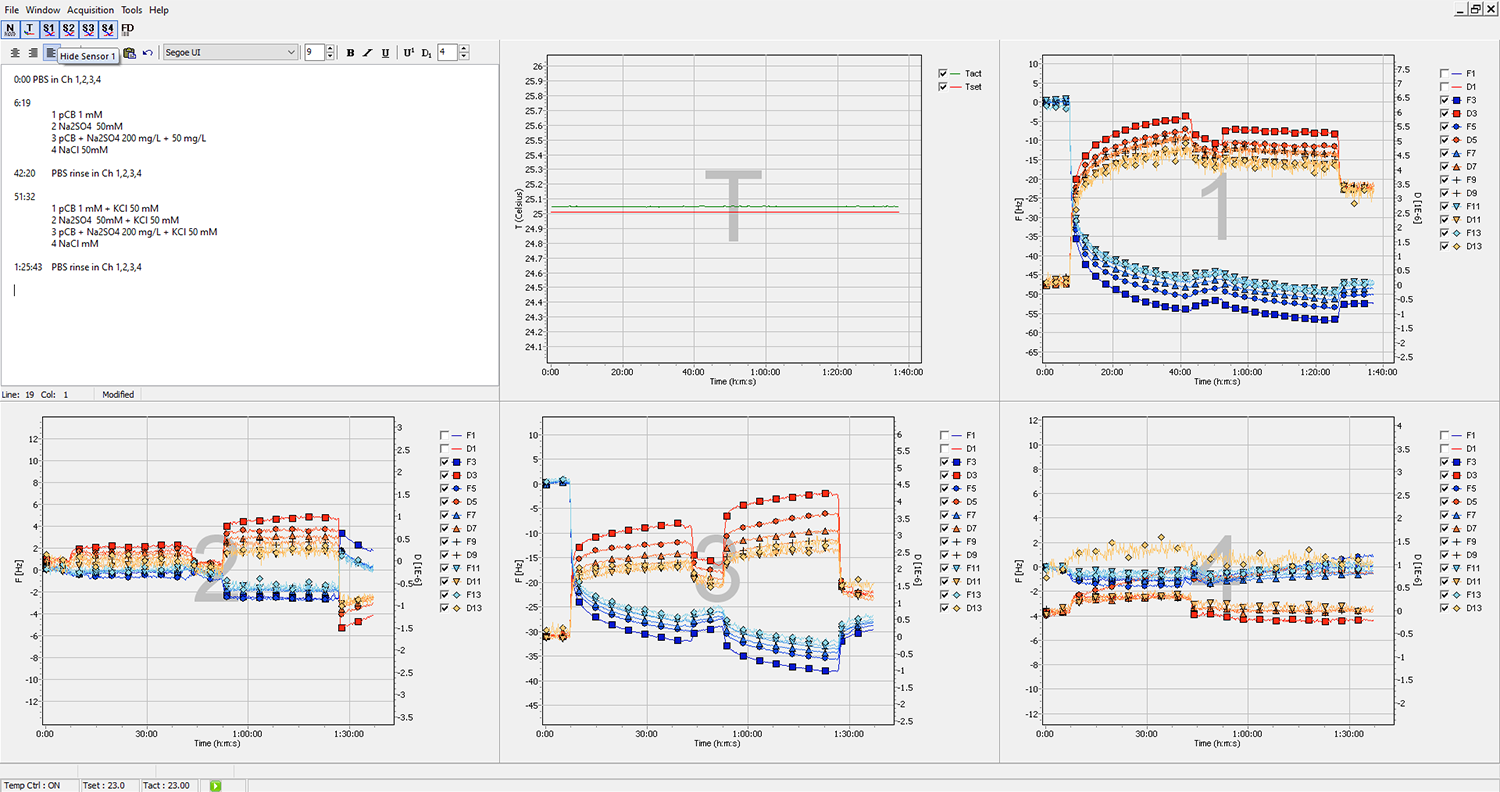

Real-Time Data

View synchronized frequency and dissipation data as the experiment runs

Temperature Programming

Automate temperature ramps directly within your measurement sequence

Automated Sample Handling

Use QAuto to run programmed liquid sequences (Analyzer platform only)

Talk to an Instrumentation Specialist Today!

Data Acquisition Software for QSense Explorer & Analyzer

QSoft is the data acquisition software used with QSense systems for real-time QCM-D measurements. It provides full control over sensor configuration, data acquisition, temperature programming, and integration with liquid handling systems. The software supports both standalone and automated measurement workflows for the QSense Explorer and Analyzer. QSoft features an intuitive interface for monitoring frequency and dissipation, as well as advanced tools for temperature ramping, resonance tuning, and sample sequence programming through the QAutoController module when used with Analyzer systems.

qsoft software

Product Features

Manual & Automated Control Options

QSoft provides flexible control over your experiments, whether you prefer manual steps or automation. Measurements can be started, paused, or restarted at any time, with real-time updates across frequency, dissipation, and temperature. Users working with the Analyzer platform can integrate QAuto for programmed liquid handling, enabling synchronized sample delivery with data collection. For Explorer users, full manual control offers maximum customization of every measurement stage.

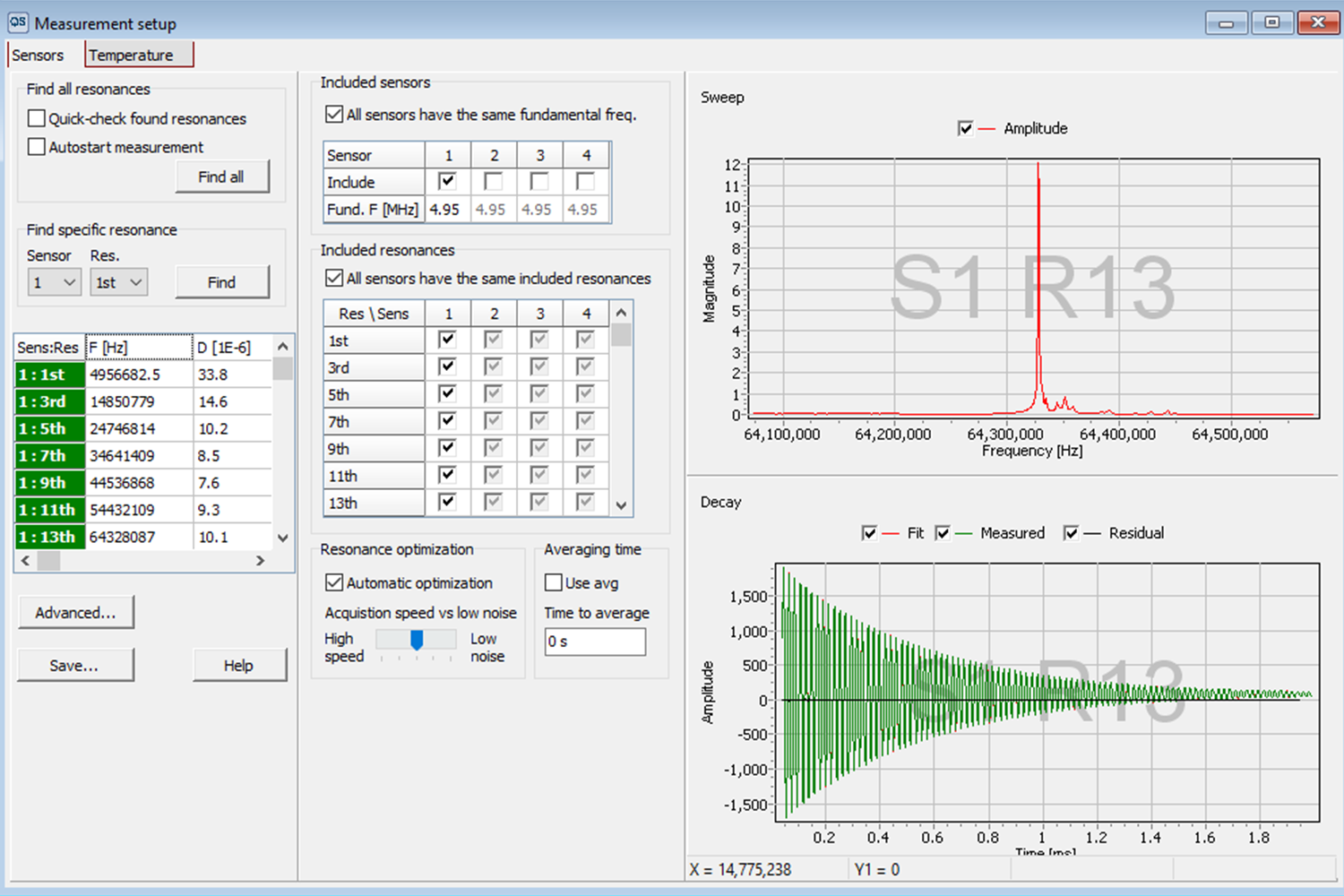

Advanced Resonance Tools

With QSoft, identifying and optimizing sensor resonances is streamlined through automatic or manual routines. The software scans and fits resonance peaks, calculates frequency and dissipation, and displays decay curves in real time. For more complex samples, you can fine-tune settings such as drive amplitude, decay sampling rate, and fit parameters. These tools give you complete control over how each overtone is detected and analyzed.

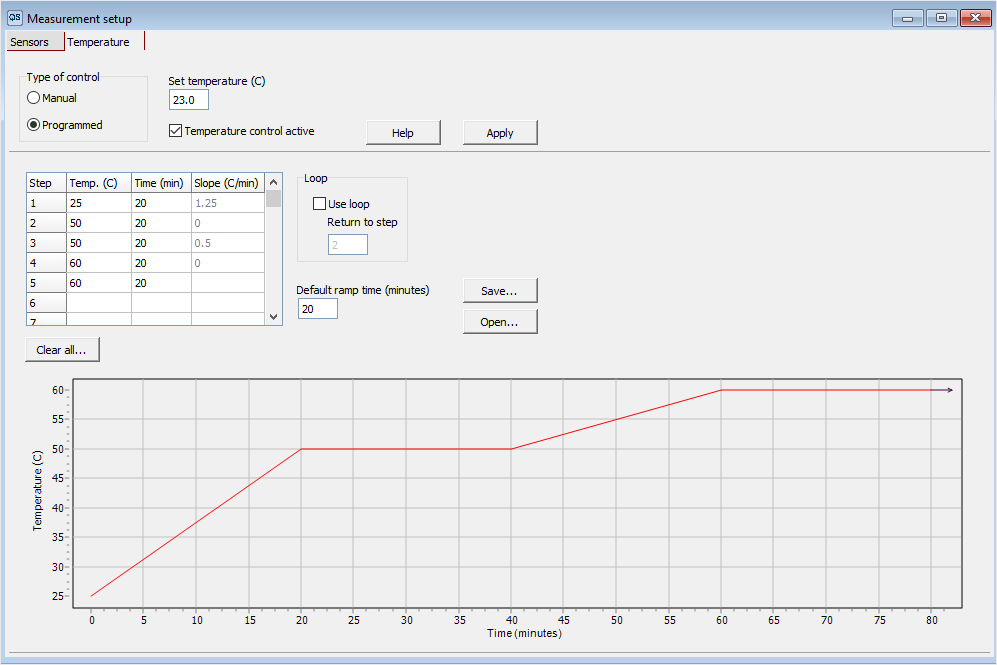

Integrated Temperature Programming

QSoft includes built-in temperature control and programmable temperature steps, making it easy to run ramp or hold sequences during measurements. The software automatically calculates the slope between setpoints and begins the program as soon as acquisition starts. Looping options allow for repeated thermal cycles, and charts show both set and actual temperature values to support precise thermal control throughout the experiment.
