Product Brochure

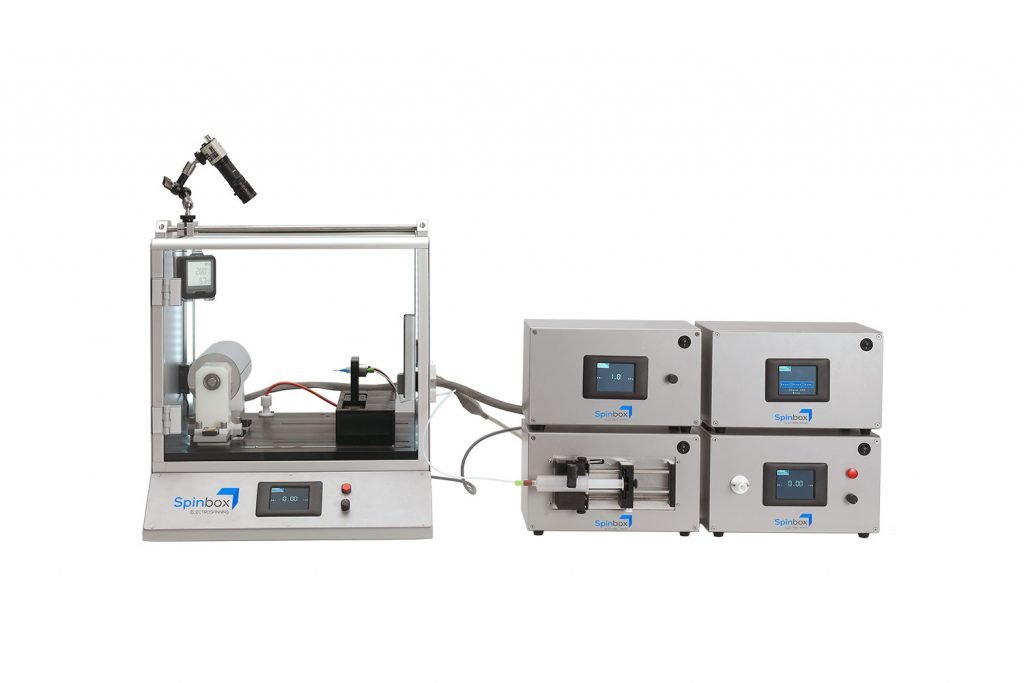

Spinbox® Electrospinning & Electrospraying System

Spinbox®

Product Overview

Ideal for proof-of-concept of new materials and formulations. Its wide range of capabilities and exceptional reliability allows scientists to efficiently prototype and optimize their concepts.

Research-Grade Capabilities

Control 7+ parameters for nanofiber or nanoparticle development.

Compact & Ergonomic Design

Designed to fit in small laboratory spaces with built-in critical safety features.

Spinbox Features

This equipment not only offers the basic essentials to create electrosprayed particles and electrospun fibers, but it also offers a chemically resistant cabinet and multiple features to obtain aligned fibers, core-shell particles or fibers, ability to increase uniformity and production, among many other capabilities. As compared to home-built systems, this unit also offers the advantage of a passive exhaust system to remove gas solvents from both processes allowing the user to maximize their fume hood workspace. With the capability to work in horizontal or vertical spinning configurations, this unit offers flexibility for all of your application needs.

  • Designed to fit in small laboratory spaces
  • Ergonomic design
  • Easy to use
  • Flexible configurations to meet your needs

Talk to an Instrumentation Specialist Today!

Spinbox

Standard Product Features

  • Small-scale production for concept development
  • Modular control for user flexibility
  • High voltage power supply (0 to +30 kV)
  • Solution dispensed through syringe pumps or pressurized vessels
  • Variable target distance (manual, emitter to collector)
  • Safety shut-off switches in access doors
  • Passive exhaust system

Optional Upgradeable Features

  • Adjustable negative high voltage power supply to improve sample deposition (-10 to 0 kV)
  • Up to three syringe pumps for coaxial or triaxial processing
  • Taylor cone visualization system
  • Rotating collector (disk, drum, mandrel)
  • Scanning emitter motion to improve thickness distribution
Videos & Demos

Spinbox Videos & demos

See Available Configurations

Spinbox Kit Options

Choose from three preconfigured Spinbox kits to best suit your application:

Spinbox electrospinner basic system

Basic Spinbox Kit

Enter the world of professional electrospinning and electrospraying instruments with this easy-to-use kit that prioritizes reliability and safety.

Spinbox electrospinner intermediate system

Intermediate Spinbox Kit

All the benefits of the Basic Kit, plus a rotating drum collector system for generating aligned fibers. Updateable at any point with plug-and-play accessories.

Spinbox electrospinner advanced system

Advanced Spinbox Kit

Generate complex samples like core-shell and tubular structures with higher throughput and better homogeneity thanks to needle translation.

Want to learn more? Talk to a scientist:

Spinbox® Electrospinning & Electrospraying System

Spinbox Model Comparison

Feature
Basic
Intermediate
Advanced
Benefits
Solvent Resistant Frame & Enclosure Enables easy cleaning
LED Lighting Illuminates inside of chamber for Taylor cone visualization
High-Voltage Power Supply
(0 to +30kV)
Controls voltage between emitter and collector
Variable Emitter Distance 5-25 cm Changes distance between emitter and collector to affect solvent evaporation time
Exhaust System Draws solvent vapors away to hood/exhaust system
Safety Door Interlock Turns off power when enclosure is opened
Sealed Cable Pass Through Allows plugging in other Spinbox or home-built acccessories
Syringe Pump Programmable, PC controlled flow of sample solvent
Flat Plate Collector 20 cm x 20 cm deposition area for sample
Single Phase Emitter For solution delivery and biasing
T/RH Sensor Track chamber temperature and relative humidity
Taylor Cone Camera Visualize Taylor cone to ensure process stability
Laptop Used to control flow rate, track T/RH and Taylor Cone video
Rotating Collector System
(200 to 2,000 rpm)
Enables the use of different rotating collectors
Drum Collector 10 cm x 20 cm (D x L) for deposition of fibers (random or aligned) and particles
Second Syringe Pump (for coaxial) Required for producing core shell structures; one pump for core, one pump for shell
Coaxial Single Phase Emitter Enables development of core-shell structures
Multi-Emitter
(up to 5 emitters, single phase and/or coaxial) with field deflectors
Enables higher throughput and faster deposition time
Mandrel Collector Develop hollow cylindrical samples like artifical blood vessels
Scanning Emitter Motion Increases deposition area and homogeneity
Collector High-Voltage Power Supply
(-10 to 0 kV)
Improves sample deposition in the collector and prevents sample waste
