Fluidnatek® LE-50

iso13485-certifiable
Espin-scale-up-icon
Electrospinning & Electrospraying System

Fluidnatek® LE-50

The Fluidnatek LE-50 is a precise electrospinning and electrospraying system that allows researchers to produce nanofibers and particles with tightly controlled diameters and morphologies. It offers fully adjustable parameters including emitter and collector voltages, flow rate, automated needle translation, spinning distance, and more for optimized nanomaterial production.

Premier Processing

Advanced flexibility with simultaneous dual-solution processing & independent HV controls for both needle-based & needle-less technology

Exceptional Environmental Control

Ensures consistent and reproducible results every time with an ECU that provides precise heating, cooling, drying, and humidifying

Compact to Commercial Scale

Easily translate R&D processes on LE-50 benchtop unit to large-scale production processes with precise, sophisticated process control & sample quality

Talk to an Instrumentation Specialist Today!

Best-in-Class Benchtop Electrospinning and Electrospraying Machine

The Fluidnatek LE-50 electrospinning unit is a professional benchtop system engineered for precision laboratory-scale research and development of nanoscale materials. Featuring a comprehensive control interface, researchers can adjust parameters such as voltage, flow rate, and spinning distance to tailor the characteristics of the produced nanofibers with exceptional accuracy. Its environmental control capabilities ensure consistent conditions within the processing chamber, optimizing reproducibility and experimental outcomes. With its user-friendly design and scalability options, the Fluidnatek LE-50 empowers researchers to explore various materials and applications, making it an ideal choice for cutting-edge nanomaterial research and development.

Application Areas:
Fluidnatek LE-50

Product Features

Full Environmental Control

The LE-50 works seamlessly with the Fluidnatek Environmental Control Unit (ECU) with capabilities to regulate temperature and relative humidity within the processing chamber. This ensures consistency and reproducibility of electrospinning experiments, especially when working with difficult solutions, sensitive materials, or in varying environmental conditions.

Global Process Monitoring

Comprehensive oversight of all critical parameters and stages throughout the electrospinning process is possible with the LE-50 data storage and/or High-definition Process Data Hub. This includes real-time monitoring of variables such as voltage, flow rate, temperature, humidity, and solution viscosity to ensure optimal conditions and reproducibility. By implementing advanced sensors and data acquisition systems, researchers can track these parameters globally, enabling precise control and adjustment to achieve desired nanofiber properties consistently. Additionally, integrated software may provide visualization tools and data analytics to analyze trends and optimize process parameters for enhanced efficiency and product quality.

User-friendly Interface

The Fluidnatek LE-50 includes a fully integrated touchscreen panel featuring a user-friendly interface with intuitive controls and software for easy operation. Researchers can set up experiments, adjust parameters, and monitor process parameters conveniently, reducing the learning curve and enhancing productivity.

Advanced Sample Development

Multiple configurable and automated electrospinning emitter stages with independent high voltages and solution supplies allow for dual spinning (co-spinning) of multiple solutions simultaneously for complex sample development. The LE-50 accommodates the production of fiber-fiber, fiber-particle, or particle-particle sample productions in various material combinations and form factors.

Versatility

The Fluidnatek LE-50 offers versatility in compatible materials, solvents, and 10+ electrospinning configurations. Researchers have the flexibility to experiment with various materials (polymers, ceramics, metallics, etc.), additives, emitters (needle, multi-needle, coaxial, needle-less), spinning orientations (vertical, angled, horizontal), and collectors (e.g. flat plate, drum, mandrel, water bath) to fabricate nanofibers and particles with different properties for numerous applications all in a single integrated electrospinning unit.

Scalability

While designed for laboratory-scale research, the Fluidnatek LE-50 offers a clear scalability pathway for potential transition to larger-scale production processes performed with the Fluidnatek LE-100 or LE-500. This scalability ensures seamless continuity and compatibility between lab-scale experiments and industrial-scale manufacturing.

Safety Features

Numerous safety features such as chamber door interlock, password-protected operator access, regulated airflow for solvent vapor removal, and emergency shutoff are integrated into the design of the Fluidnatek LE-50 to ensure operator safety during electrospinning operations.

Top-tier comprehensive US-based support and service for the LE-50 and accessories, including installation assistance, training, maintenance, and technical support are available to help users maximize the performance and reliability of the equipment.

Fluidnatek LE-50

Electrospinning & Electrospraying Applications

Biomedical & Tissue Engineering

Electrospun nanofibers are used to create scaffolds for tissue engineering applications. These scaffolds mimic the extracellular matrix, providing a supportive environment for cell growth and tissue regeneration. They are prevalent in wound healing, bone regeneration, nerve regeneration, and more.

Medical Devices

Whether as coatings for prefabricated structures, active ingredient additives, or total device fabrication, medical devices implement electrospun nanofibers and particles for enhanced therapeutic effectiveness. These fibers and particles can allow for improved performance in mechanical properties, biological microenvironment control, cellular integration, and many more application-specific advantages.

Drug Delivery

Electrospun fibers and/or particles can be loaded with drugs or therapeutic agents and used as drug delivery systems. Precisely controlled electrospinning parameters allow the high surface area-to-volume ratio and tunable properties of nanomaterials providing controlled release of drugs, making them suitable for targeted and sustained drug delivery.

Functional & Bio Textiles

The enhanced performance of textiles by imparting properties such as water resistance, flame retardancy, and antimicrobial activity can be accomplished using electrospun materials. These fibers are used in lightweight protective clothing, wound dressings, and specialty textiles for various applications.

Filtration & Separation

 Nanofibrous membranes produced by electrospinning are employed in filtration and separation processes due to their small pore size and high porosity. They are used in air filtration, water filtration, oil-water separation, and other environmental applications. This can be done using high-throughput electrospinning methods, such as needle-less electrospinning.

Batteries & Fuel Cells

 Energy storage and conversion devices such as batteries, supercapacitors, and fuel cells utilize electrospun nanofibrous materials for improved performance of these devices due to their high surface area and electrical conductivity. Ease of particle incorporation, such as ceramic/inorganic nanoparticles, and homogeneity in electrospinning promotes the efficiency of the fibrous materials electroconductivity.

Cosmetics

Electrospun nanofibers can be used as carriers for active cosmetic ingredients such as vitamins, antioxidants, peptides, plant extracts, and more to provide targeted treatment for things like anti-aging, anti-scarring, UV protection, or moisturizing. These nanofibers provide a large surface area and controlled release properties, ensuring better penetration into the desired area and enhanced efficacy of the active ingredients.

Environmental Remediation

Electrospun nanofibers can be used as carriers for active cosmetic ingredients such as vitamins, antioxidants, peptides, plant extracts, and more to provide targeted treatment for things like anti-aging, anti-scarring, UV protection, or moisturizing. These nanofibers provide a large surface area and controlled release properties, ensuring better penetration into the desired area and enhanced efficacy of the active ingredients.

Food Packaging

Electrospinning in food packaging involves utilizing nanofibers and incorporated particles to create innovative packaging materials with enhanced barrier properties against oxygen, moisture, and microbes, extending the shelf life and freshness of food products. These nanofibrous packaging materials offer a sustainable and environmentally friendly alternative to traditional packaging materials, contributing to the reduction of food waste and environmental impact in the food industry.

Fluidnatek LE-50

Product Accessories

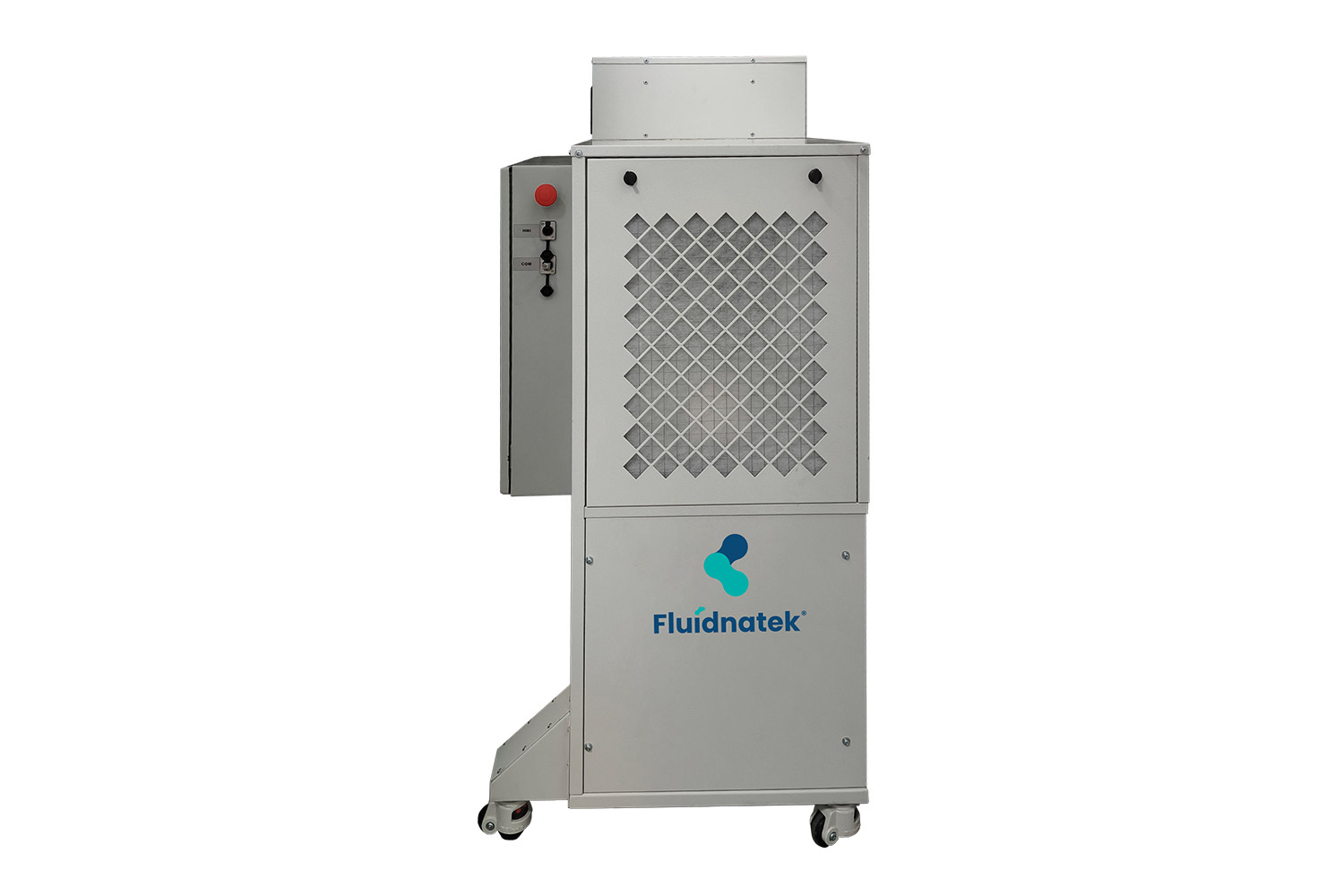

Environmental Control Unit or Dry Heating Unit

ECU provides tightly controlled temperature (18-45°C) and relative humidity (10-80%) with HEPA filtration, a necessity for ensuring reproducible and consistent electrospinning results. DHU provides an alternative environmental control for solution processing requiring low humidity (ambient RH down to 25% at 25ºC, or down to 10% at 45ºC) and/or increased temperature (RT up to 45ºC).

High Definition Process Data Hub
HDPDH provides real-time updates, monitoring, and control of the electrospinning unit with 20+ viewable process parameters. This powerful, unique Industry 4.0 software tool provides a detailed record of process stability over time. The Process Data Hub ensures process consistency and repeatability between batches and across platforms, providing smooth scalability to higher throughput.
High Voltage Options

With multiple independent high voltages available in the unit, bias can be applied to additional emitters and/or collector. Additionally, voltages can be upgraded to bipolar capacities of -30kV to +30kV (emitter) or –10kV to 10kV (collector). Multiple adjustable voltages and a secondary stage in tandem provide configuration flexibility, such as co-spinning or dual spinning/spraying, emitter/collector voltage inversion for specific orientation, or preferential sample deposition/morphology.

Multiple Syringe Pumps
The LE-50 can accommodate up to 3 single syringe pumps within the electrospinning chamber. Implementing 2 or more syringe pumps opens the door to multi-solution processing for coaxial, triaxial, or co-spinning (AKA dual spinning) sample formation. Simultaneous use of multiple solutions enables the creation of composite or layered fibers with diverse properties for advanced applications. This setup also increases productivity by enabling higher throughput and flexibility in controlling fiber characteristics, such as morphology and composition, for producing more complex and multifunctional materials.
Needle Translation

The LE-50 equipped with improves sample homogeneity and thickness with needle translation. This helps produce more uniform fibers by distributing the electrospun solution more evenly across the collector, reducing fiber defects and ensuring consistent fiber diameter. Additionally, it enhances productivity by increasing the deposition area, allowing for the fabrication of larger, more uniform samples efficiently.

Adjustable Emitter Orientation

LE-50 compatible emitters can be positioned vertically and horizontally on independent spinning stages or angled (using an articulating flexible arm). Vertical orientation for top-down spinning or spraying onto collectors or water bath providing options for improved solution processing or particle collection. Horizontal and angled positioning prevent solution dripping onto collectors, easily allowing solution optimization or low viscosity solutions to be processed without defect to the final sample.

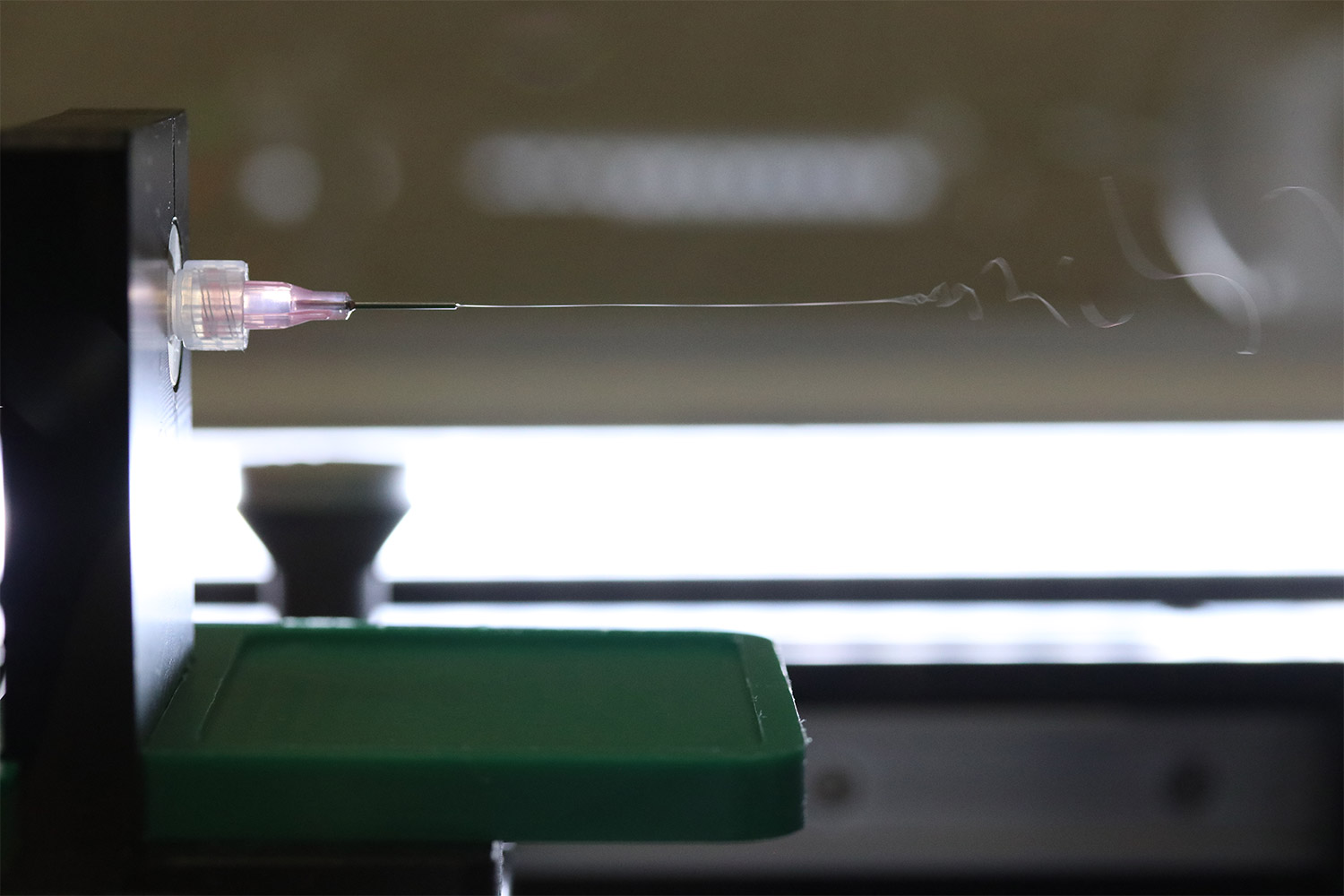

Taylor Cone Visualization System

The Taylor cone visualization system uses a high-quality camera to focus directly on the emitter needle tip for a close view of Taylor cone formation and solution processing. Taylor cone formation is indicative of the electrospinning quality and is therefore crucial for monitoring during process optimization. By observing the cone shape and stability in real-time, operators can quickly adjust parameters such as voltage or flow rate to ensure consistent fiber production and reduce defects. This leads to improved control over fiber diameter, morphology, and quality, resulting in a more efficient and reliable electrospinning process.

Emitter Variety

The LE-50 accommodates both needle-based (single phase, coaxial, triaxial, multi-needle, gas-assisted) and needle-less (slit injector) emitter forms all in a single electrospinning unit. This extensive array of emitters means and equally extensive array of fibers and particles morphologies are possible, including core-shell, core-shell-shell, hollow, textured, porous, and many more. Gas-assisted and solvent-gas jacket configurations provide assistance in spinning difficult or low boiling point solutions. Additionally, multi-needle and slit injector (needle-less) options can increase overall throughput and sample productivity.

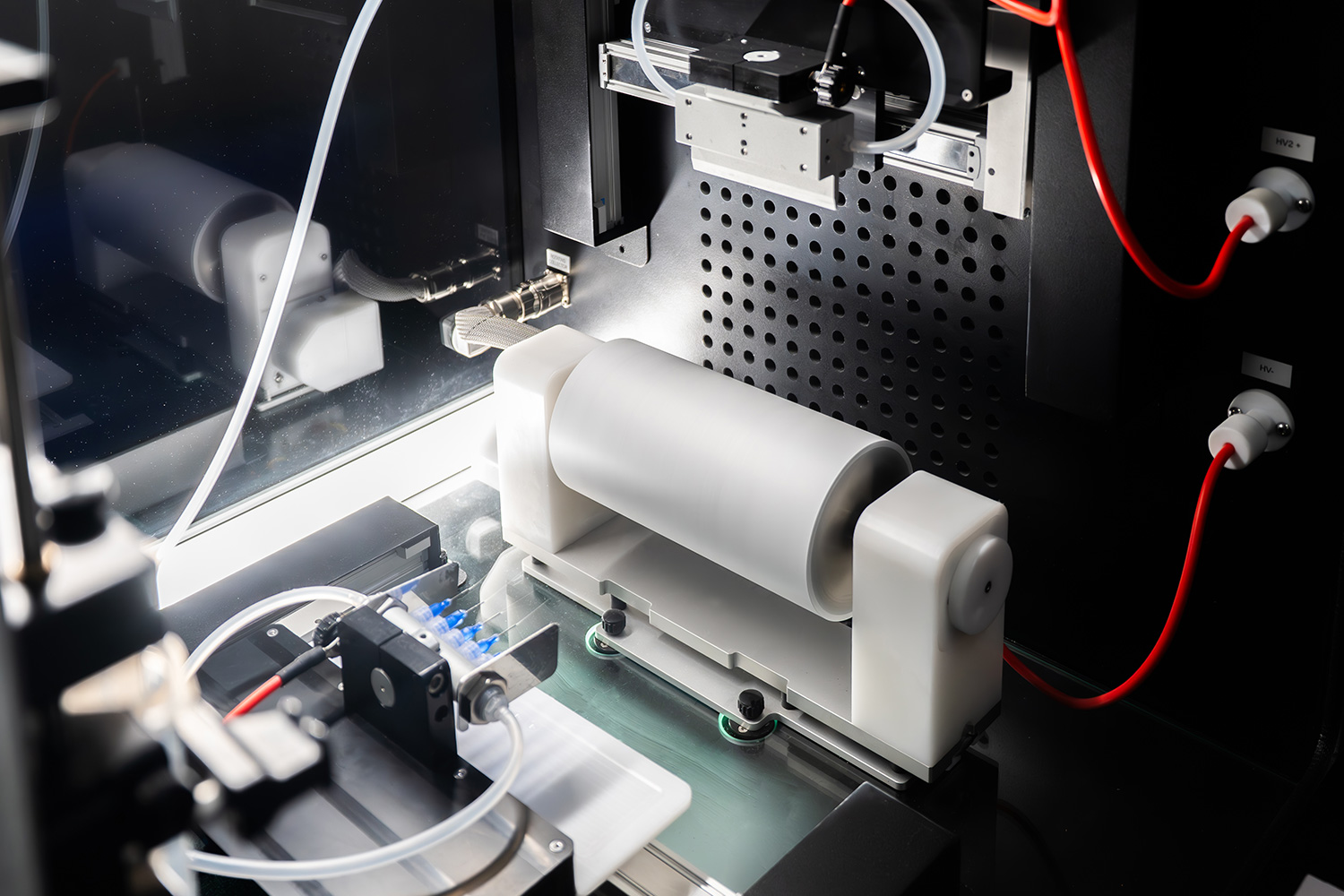

Collector Variety

In addition to a standard flat plate configuration for randomly oriented fibers, the LE-50 can be equipped with a rotating drum, rotating mandrel, or rotating disk collector for various types of sample deposition. These collectors provide a controlled, dynamic surface for fiber deposition, leading to the production of aligned or oriented fibers, which can enhance mechanical properties such as tensile strength. Rotating collectors can improve uniformity and consistency in fiber distribution, and when paired with needle translation the continuous motion helps to avoid buildup in any one area, facilitating the production of non-woven mats with consistent thickness and density over larger areas for increased productivity.

Syringe Heating

Syringe heating can be implemented from 30°C to 120°C for processing of viscous or temperature-specific solutions. Controlled heating of solutions can enhance the flow and reduce viscosity, resulting in smoother and more consistent fiber production. This can be especially useful for polymers with high melting points or that are difficult to dissolve at room temperature. Syringe heating also improves process stability, quality, and efficiency, as it reduces clogging and maintains a steady flow rate throughout the electrospinning process.

Instrument Certifiability

The high-quality, professional nature of the Fluidnatek line provides the basis for GMP, GLP, GAMP, FDA, and/or ISO-13485 certifiable electrospinning machines. This certification enhances product reliability, consistency, and safety, making electrospun materials suitable for medical, pharmaceutical, and other regulated industries. It also builds trust with clients and stakeholders, demonstrating commitment to compliance and quality control, setting the machine apart from competitors and opening doors to broader market access and potential collaborations.

Fluidnatek LE-50
