What Role Does SEM Play in Trace Evidence Analysis?

Share this Article:

Scanning electron microscopy (SEM) is a powerful imaging technique where a focused beam of electrons is scanned over the surface of a sample for high-resolution analysis. SEM can offer detailed information regarding the morphology and the elemental composition of the surface. This can prove to be invaluable in the analysis of various types of evidence in forensic science.

One of the primary applications of SEM in forensic science is trace evidence analysis, a branch of forensic science that involves the examination, comparison, and interpretation of small and microscopic materials. These materials can include fibers, hairs, glass fragments, paint chips, soil particles, plants, insects, gunshot residue, and more. Trace evidence analysis aims to link these materials to specific sources or individuals, providing valuable information in criminal investigations.

What Data Can SEM Provide?

Scanning electron microscopes play a crucial role in examining and characterizing trace evidence by providing key information about the sample including:

  1. High-resolution images: The powerful imaging capability of SEM enables forensic scientists to visualize trace materials at high magnification and resolution. It facilitates a detailed examination of the surface morphology, texture, and structural features of trace evidence. By providing a closer look at the microtopography of fibers, particles, or other materials, SEM assists in their identification and differentiation.
  2. Elemental composition: Energy-Dispersive X-ray Spectroscopy (EDS) detects and analyzes the X-rays emitted when the sample is bombarded with electrons in the SEM. EDS can be used to perform elemental analysis enabling the identification and quantification of elements present in trace materials. This capability is useful in identifying unknown substances, such as drugs, explosives, or chemical residues, which can provide critical insights into the nature of a crime or aid in the identification of illicit substances.

What Forensic Samples Can SEM Analyze?

SEMs can analyze a range of samples that are of interest to the forensic community including,

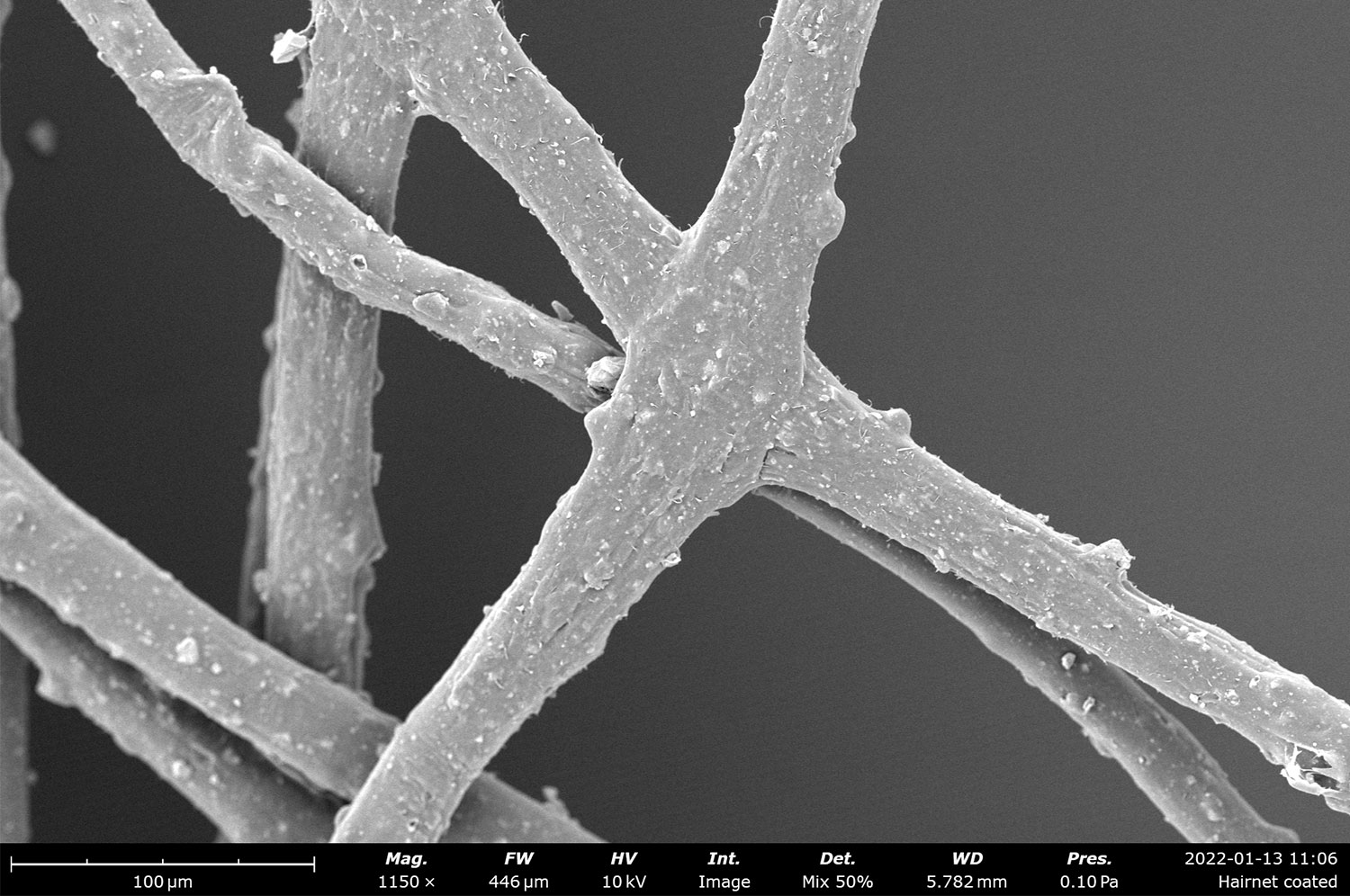

1. Hair and Fibers

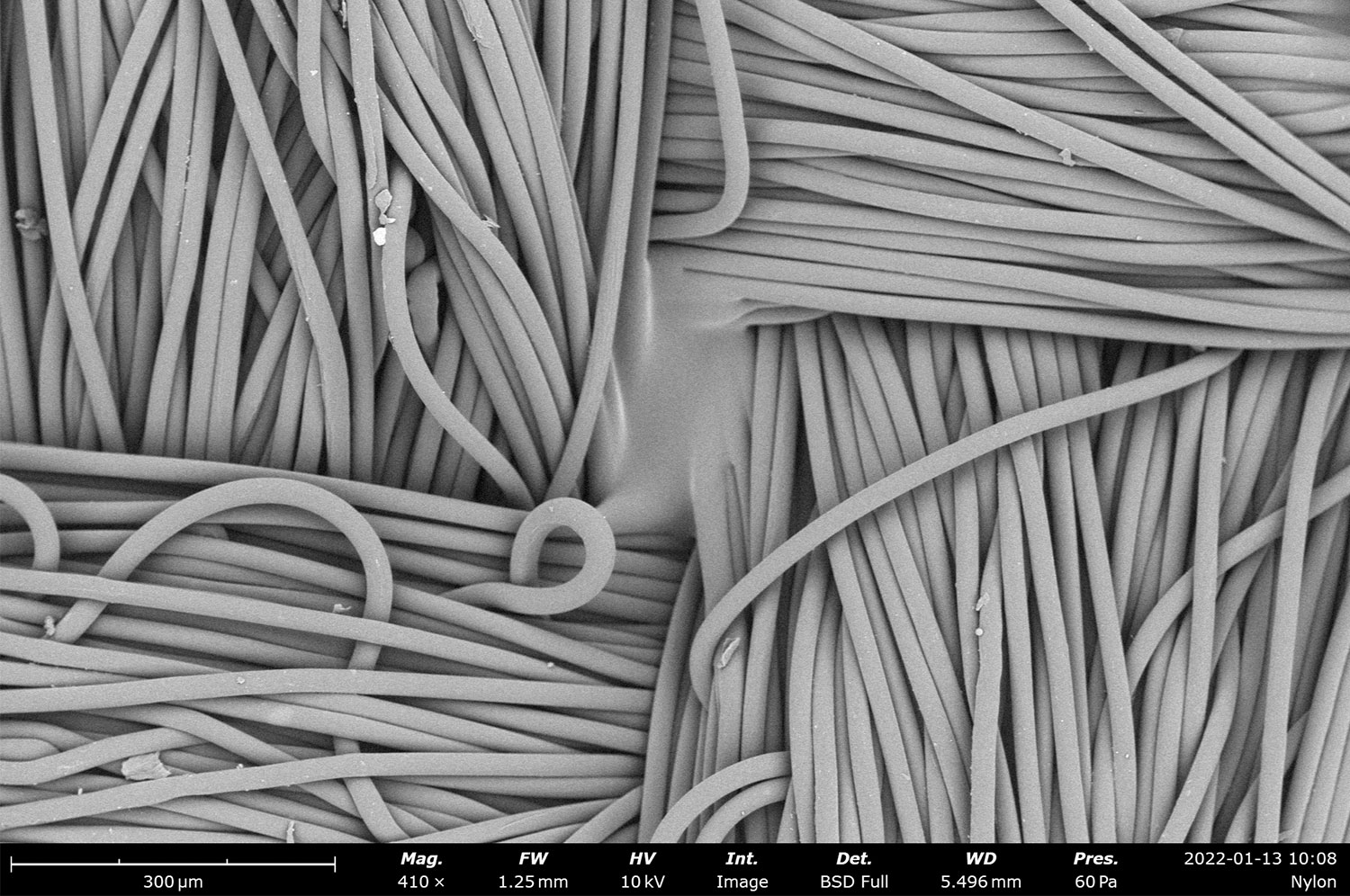

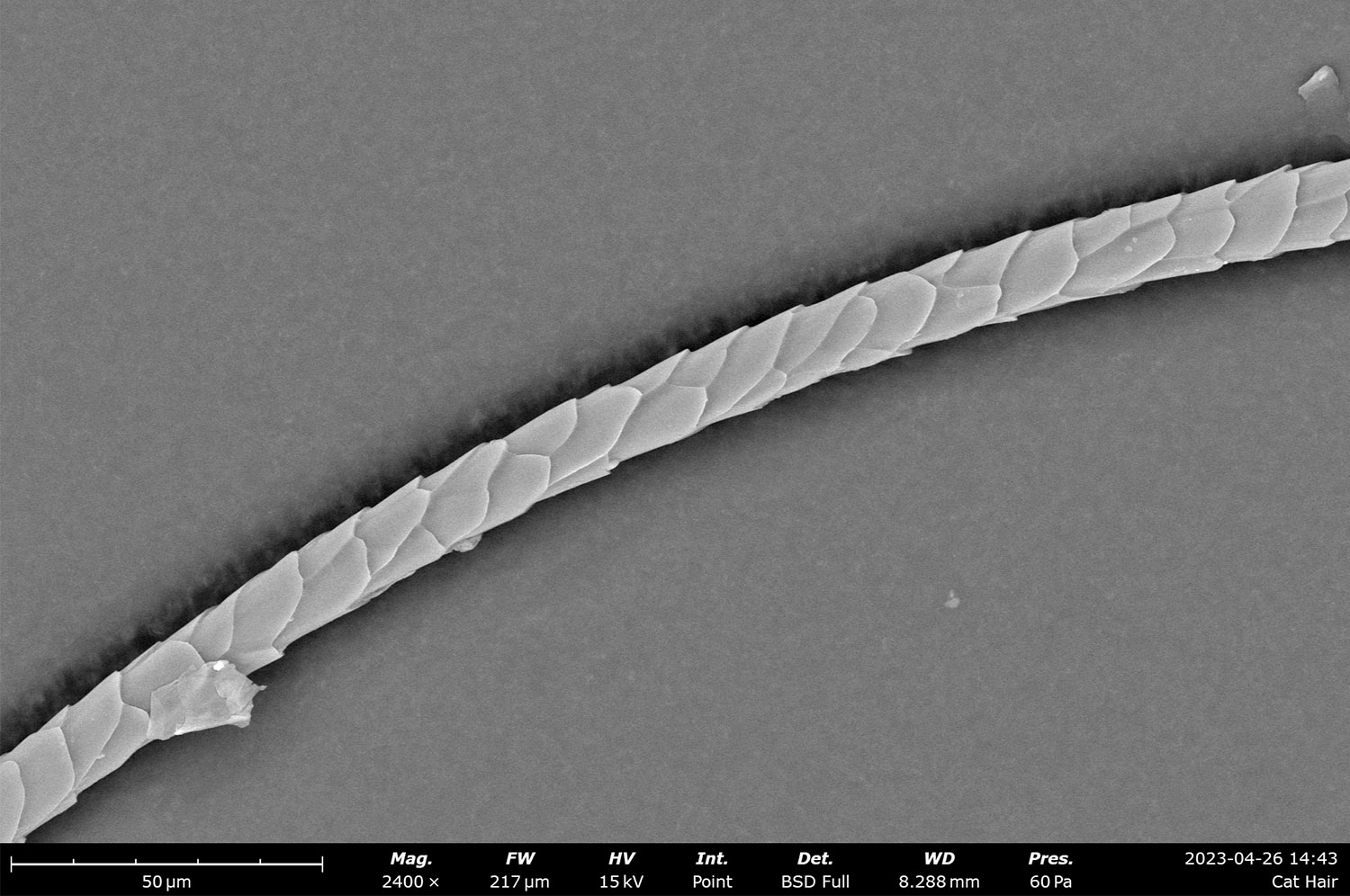

Hair and fibers play a crucial role as trace evidence because these samples can provide clarity as to the details of an individual’s hair and the identity of a fiber type. SEMs are frequently used by scientists to detect fine details of hair or fibers. By analyzing the surface structures that are visible only at high magnification, they can obtain significant insights into the chemical treatments, the ethnicity of a suspect, and the differentiation of animal species. EDS can be used to identify the presence of specific elements on the surface of a fiber. This information can be valuable in linking trace evidence to potential sources or identifying specific materials used in a crime.

2. Paint

Analysis of paint chips or flakes is a common practice to gather valuable information. These paint samples can help determine crucial details such as the colors, makes, and models of any vehicle involved in a crime scene or incident. Car manufacturers apply multiple layers of primer, color, and clear coats to achieve the desired finish. Analyzing the composition of these paint layers is made possible through EDS, allowing the elemental composition of each layer to be exposed and searched on a database of known layer compositions – or even used in direct comparison with a suspect’s vehicle.

3. Particulates

Various types of environmental particles, such as soil, dust, and minerals, are of interest to scrutinize. Different types of particles can be indicative of their originating location and associated with proximity to a crime. In investigations, soil and mud samples are often collected from the shoes and boots of suspects and analyzed with SEM to reveal the structure and composition of minerals, sand, and other particles present in these samples.

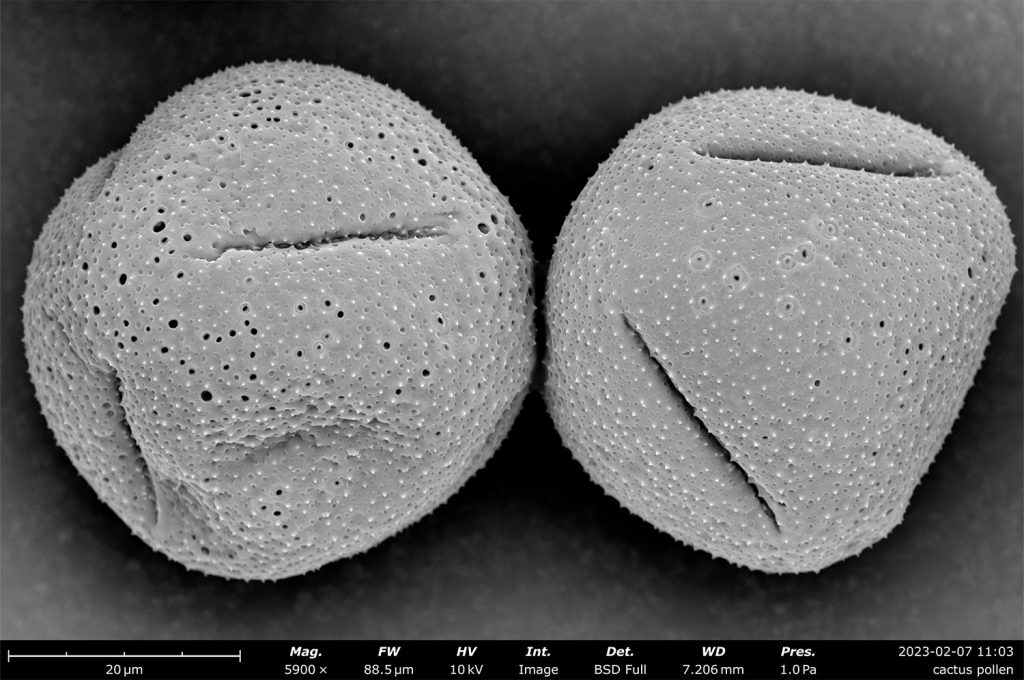

4. Botanical Materials

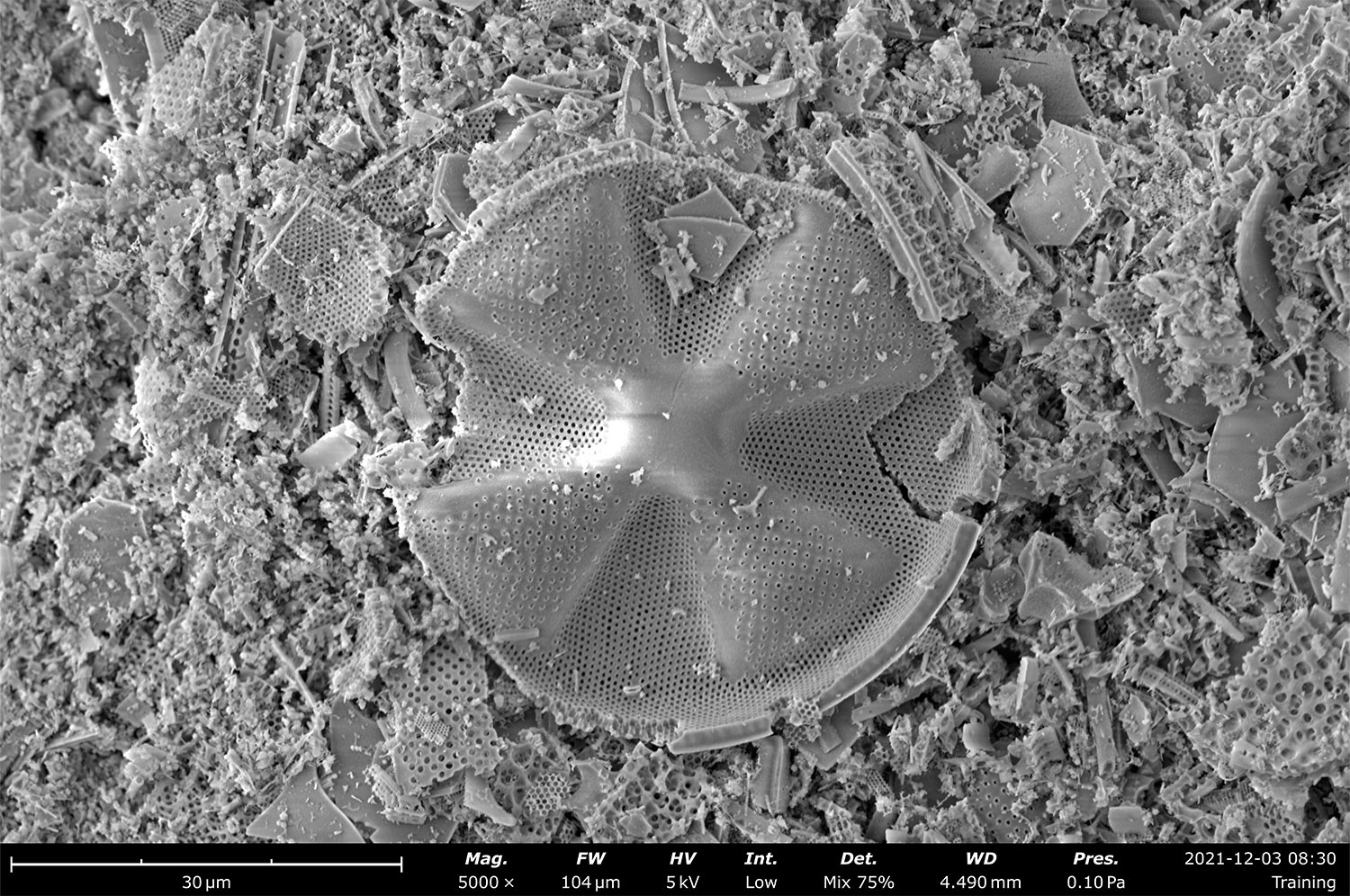

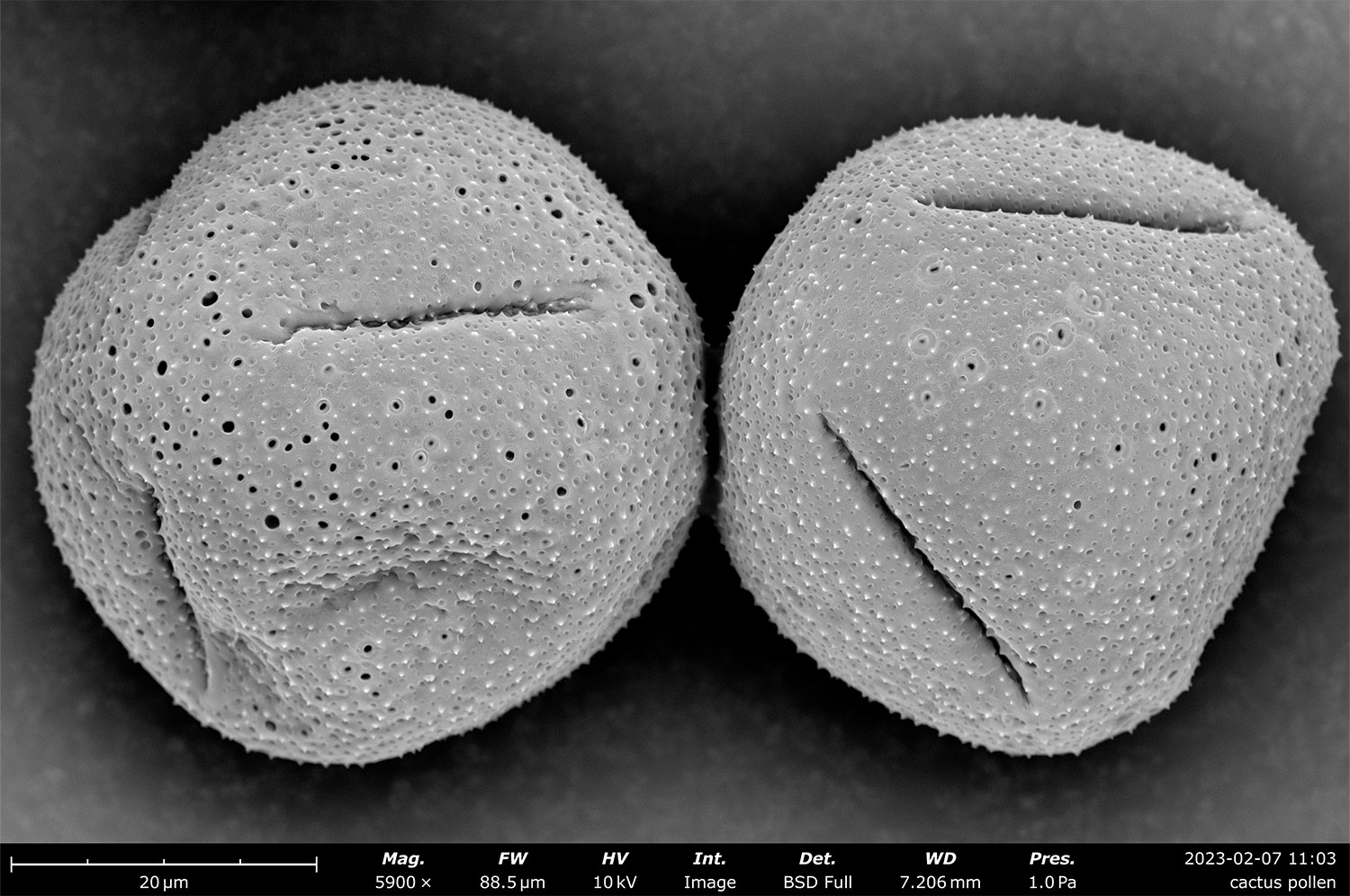

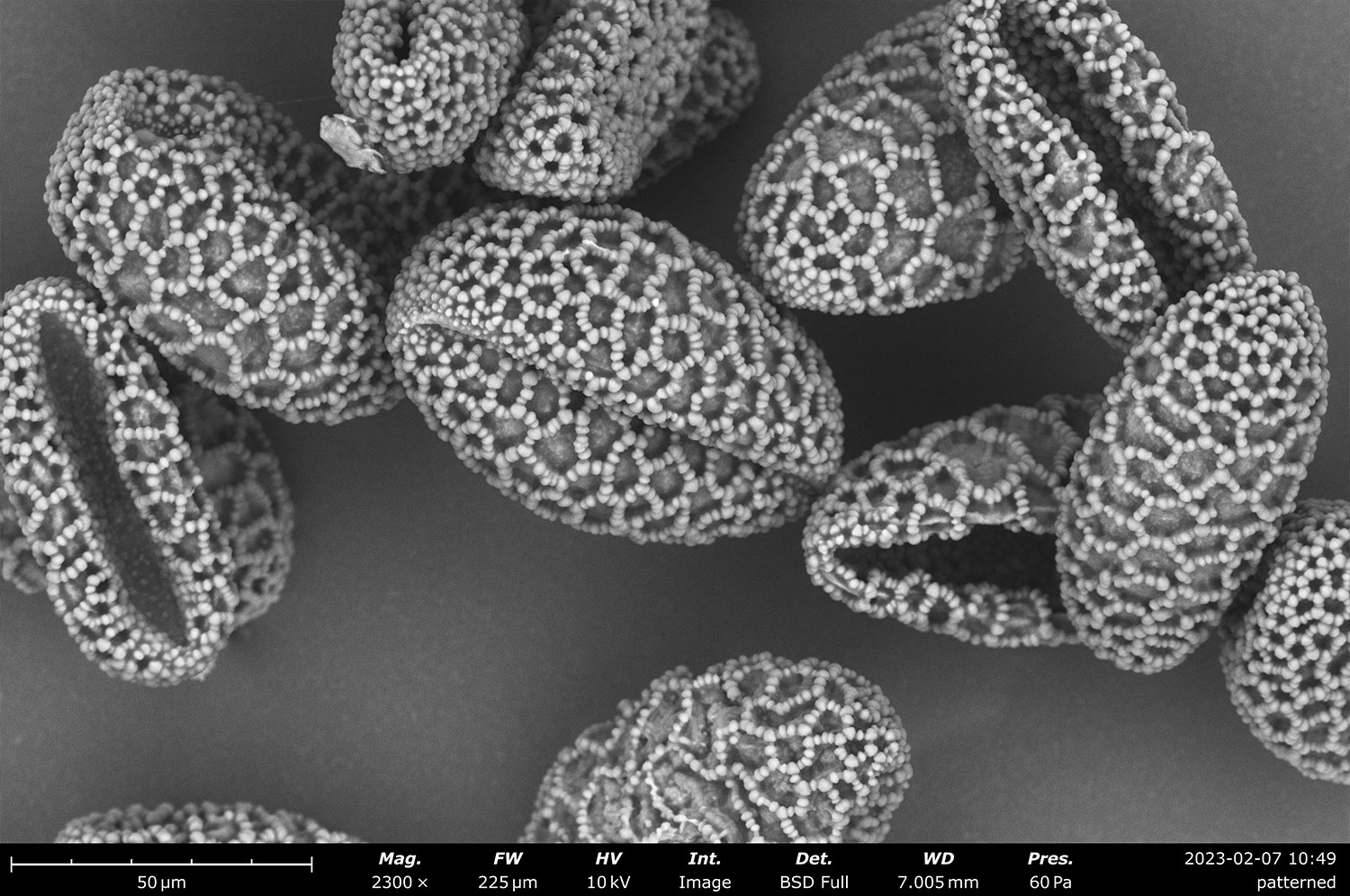

Nature’s traces are often helpful in gaining additional clues in an incident. Seeds, pollen, and leaves discovered at crime scenes have the potential to guide detectives toward crime locations or places of significance to suspects and victims. These botanical fragments not only illuminate spatial connections but also serve as temporal markers since their production may be bound by the seasons. In addition, diatoms found in water can precisely pinpoint the locations where crimes were committed.

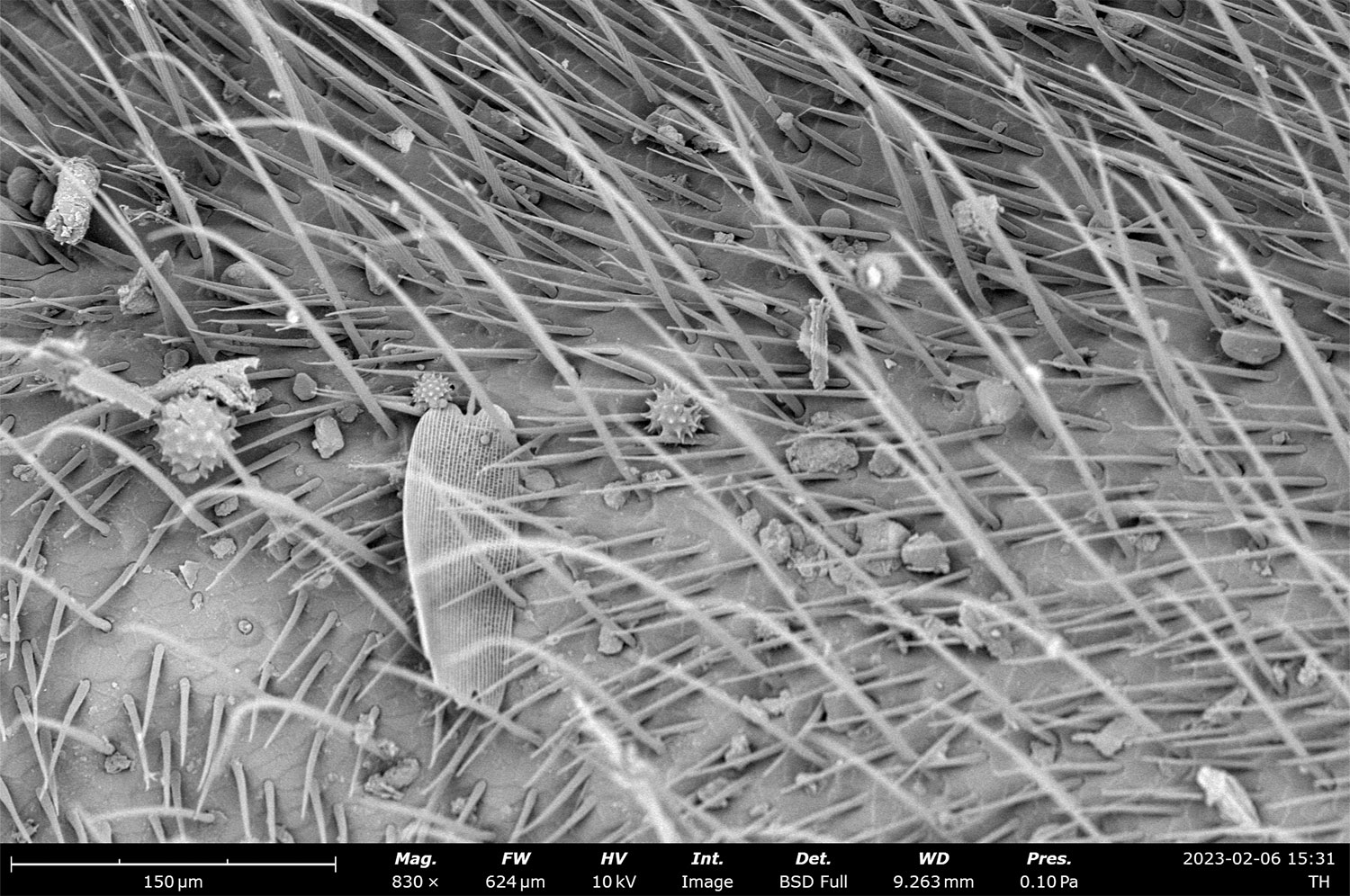

5. Entomological Materials

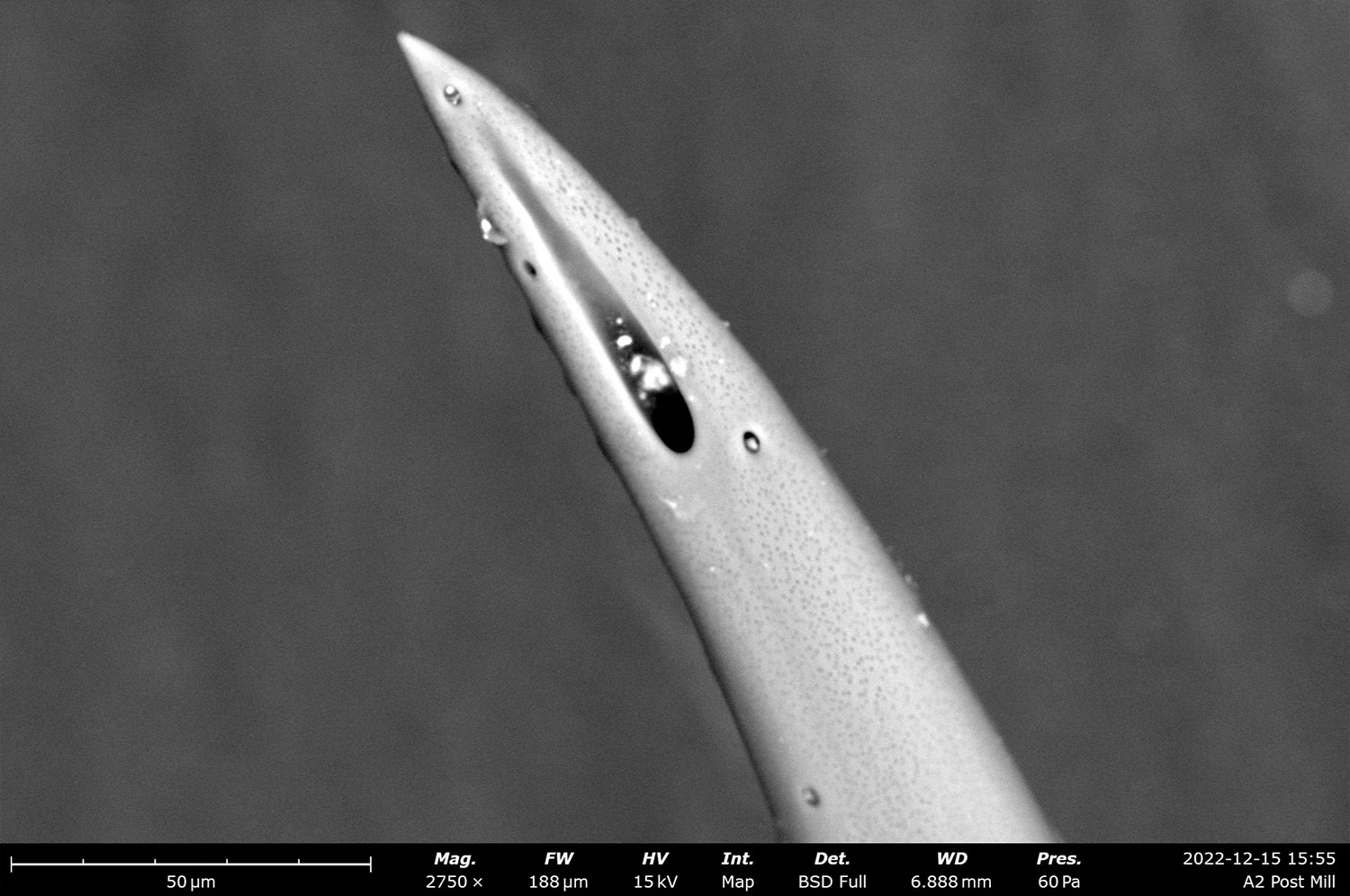

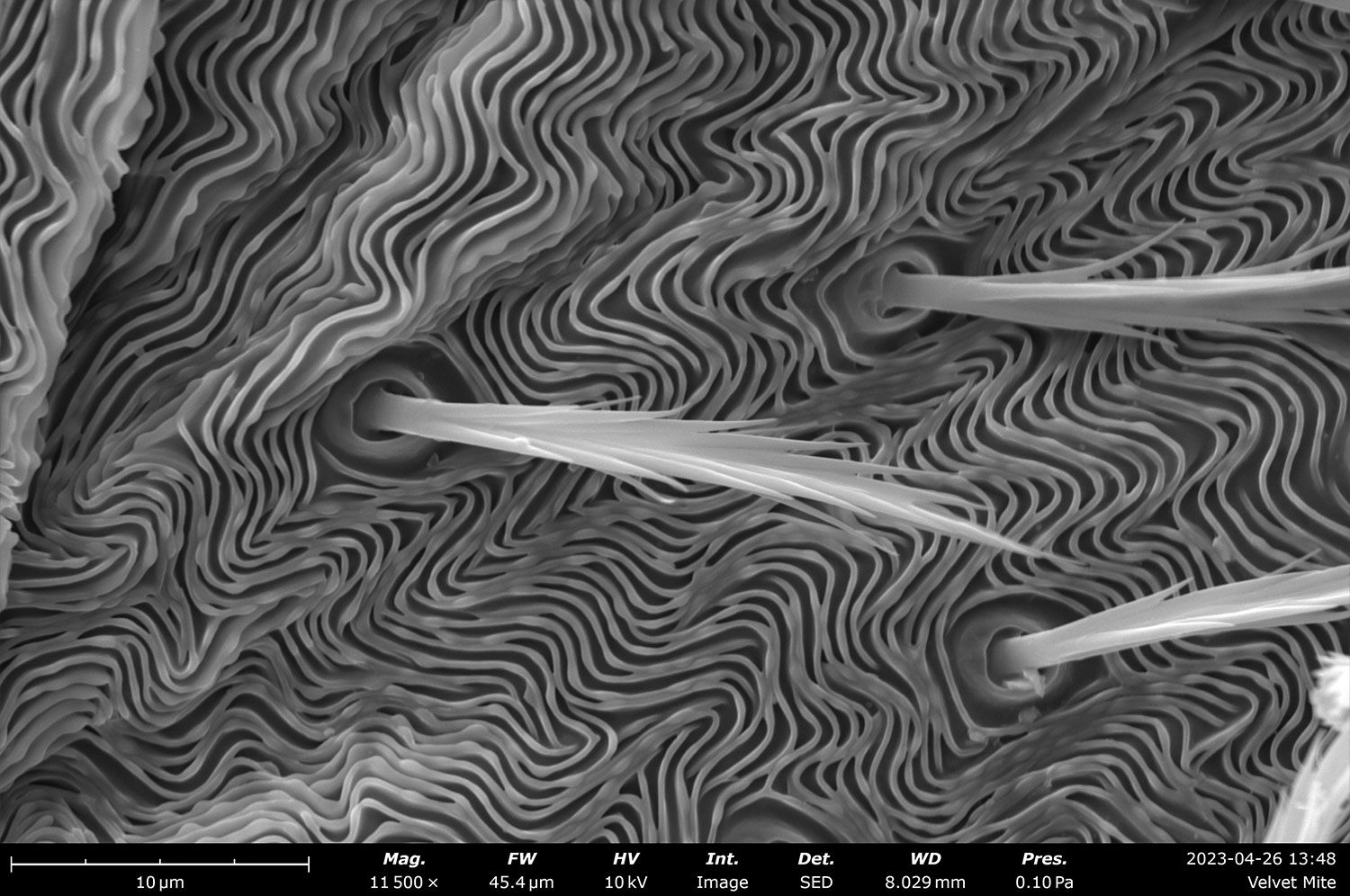

Insects, eggs, and larvae, found on or within bodies, emerge as vital indicators to shed light on the time and cause of death. The distinctive behavior of various decomposing species, from flies to beetles, dictate the intervals at which they lay their eggs postmortem. By identifying these larvae and considering the environmental factors such as temperature and exposure, investigators can deftly estimate the duration since a victim’s demise.

6. Gunshot Residue

Gunshot residue analysis is a specialized branch of forensic science that focuses on trace evidence left by suspect shooters. Discharged firearms release microscopic particles in a cloud of smoke which then deposit on surrounding surfaces and the hands which pulled the trigger. The telltale signs that indicate when a firearm has been used in a crime consist of particles with lead (Pb), barium (Ba), and antimony (Sb) traces, though some lead-free primers are rising in abundance and becoming more relevant in investigations. Many components of the weapon, such as the primer ingredients, bullets, barrel, casing, and propellant (gunpowder), influence the elemental concentration of Pb, Sb, and Ba in particles. The primary explosion compound typically is lead styphnate, while the oxidation and reduction compounds are comprised of barium nitrate and antimony sulfate, respectively.

ParticleX GSR for SEM Automation:


The fastest and most reliable automated GSR analysis solution. ASTM E1588 compliant .

Conclusion

Overall, SEM plays a pivotal role in trace evidence analysis by providing high-resolution imaging, elemental analysis, and detailed surface characterization of trace materials. Its capabilities aid in the identification, differentiation, comparison, and association of trace evidence, contributing to the determination of its origin, potential links to crime scenes or individuals, and the reconstruction of events in criminal investigations.
