Laboratory Platen Presses

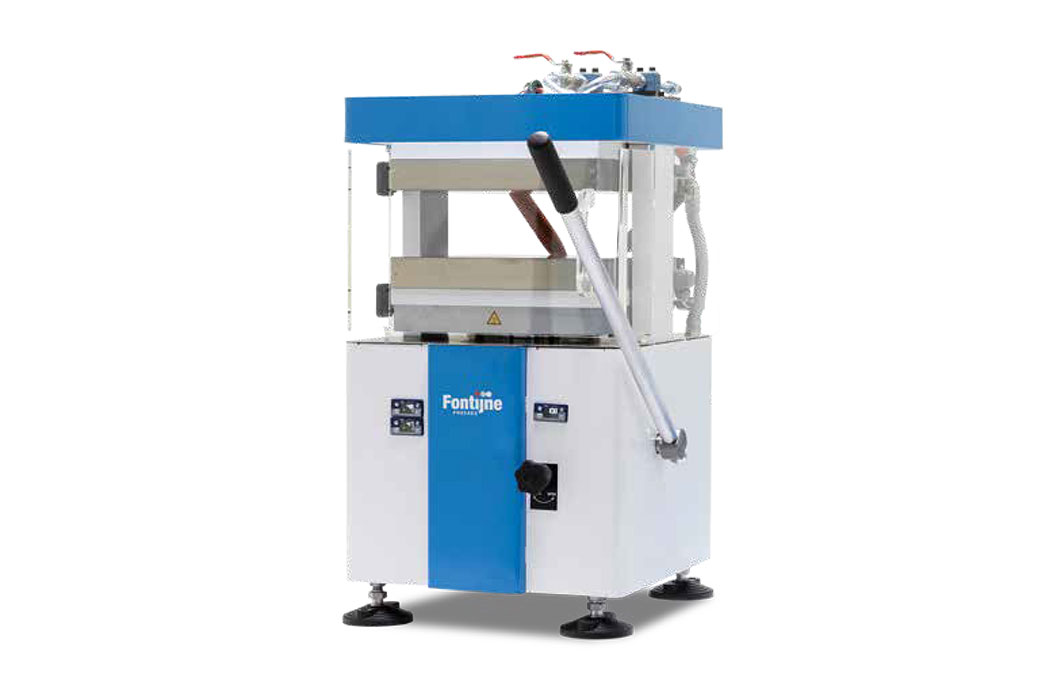

LabManual Series Presses
The LabManual series consists of manually operated hydraulic laboratory presses designed for benchtop use. Widely used in laboratories worldwide, these systems support sample preparation for quality control and R&D applications with a focus on accuracy and repeatability. Optional chrome-plated platens help prevent sample adhesion at elevated temperatures, while the closed hydraulic system eliminates the risk of oil leakage, ensuring clean and reliable operation.
Talk to an Instrumentation Specialist Today!
Manual Operations with Consistent Results
With its compact footprint, the LabManual can be easily integrated into most laboratory environments. The system is designed with operator safety in mind, and its ergonomic construction combined with intuitive operation simplifies day-to-day use. It is an ideal solution for applications requiring consistent results with moderate sample throughput, where manual operation is sufficient.
The LabManual is available in 2 models based on the maximum pressing force and platen size.

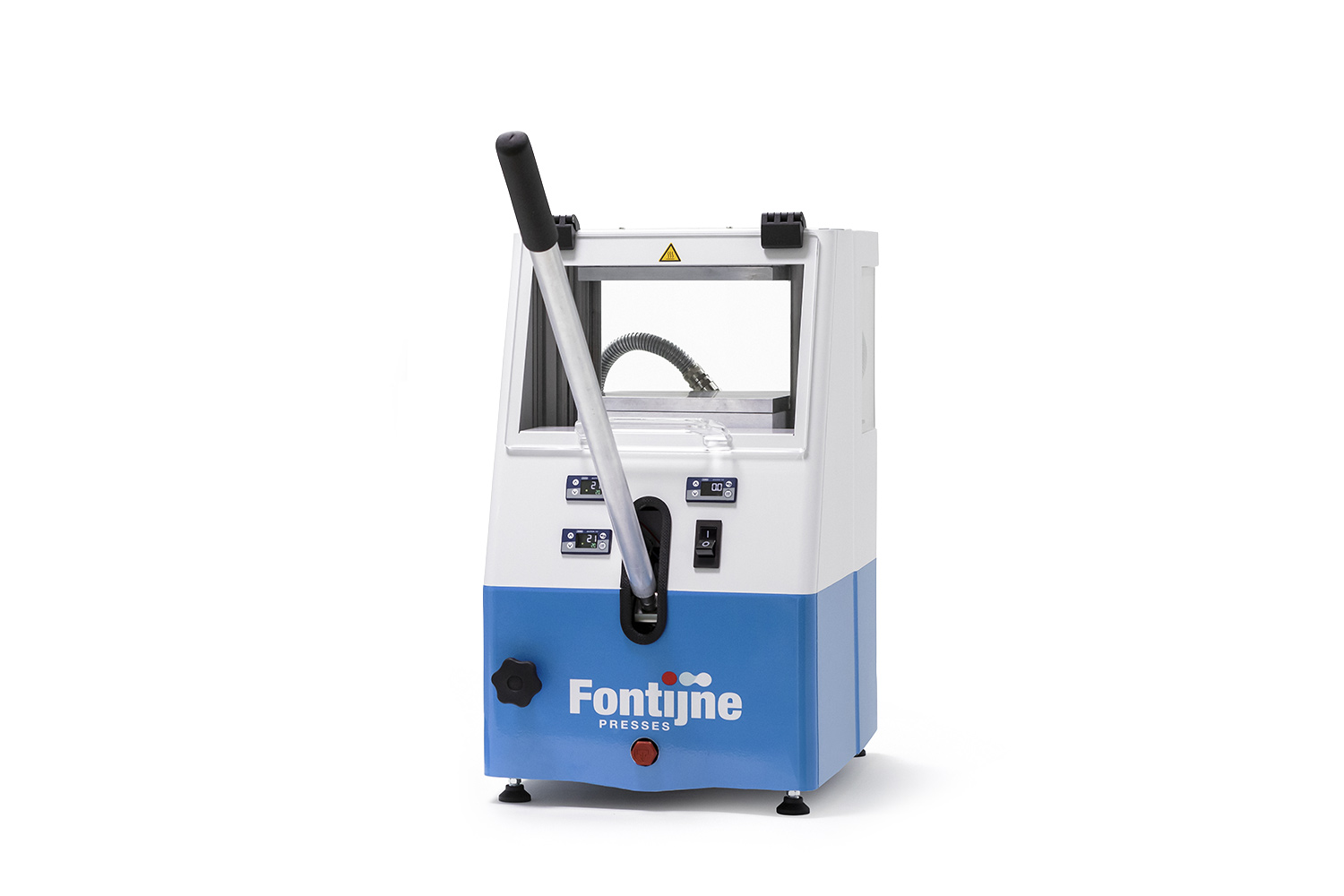

LabManual 50
• 50 kN Maximum Pressing Force
• Temperatures up to 200 °C
• 200 × 200 mm platens
LabManual 300
• 300 kN Maximum Pressing Force
• Temperatures up to 300 °C
• 320 × 320 mm platens
LabTop Series Presses
Product Features

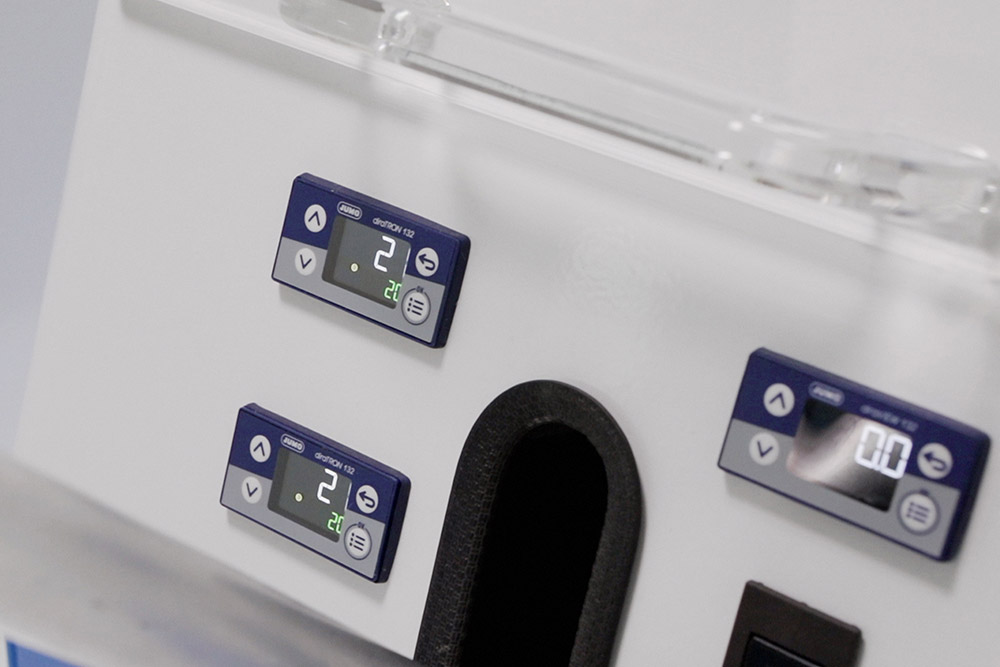

Digital Temperature & Pressure Controls
Even though the LabManual is a manually operated press, it offers multiple digital controls and read-outs, such as a digital temperature controller and a PID control system. Using the digital temperature controller, the desired temperature of the upper and lower platen can easily be entered and monitored, as the display shows both the actual temperature value and the setpoint. The PID control ensures a continuously modulated control by means of accurate and responsive correction and avoids temperature overshoot. There is also an integrated LCD-screen on the LabManual, which shows the closing force that is set by the handpump.

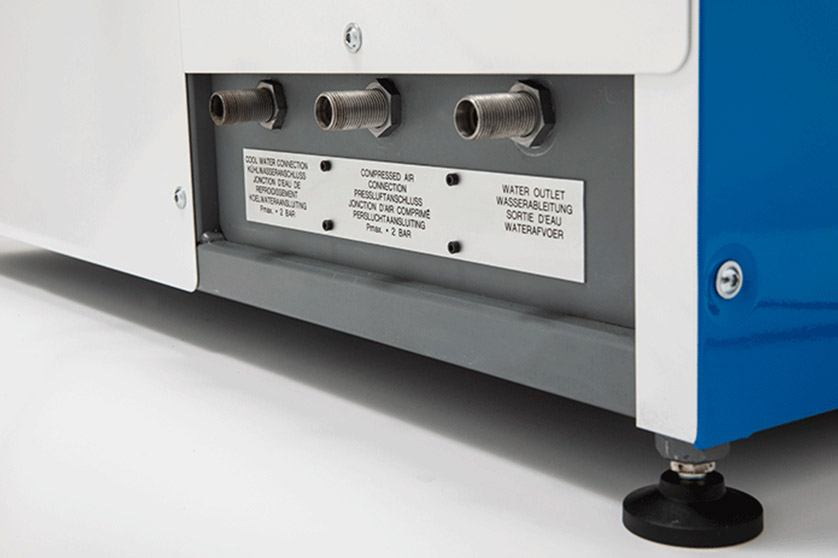

Optional Active Cooling Platform (LabManual 300 only)
The LabManual 300’s press platens can be quickly cooled between cycles with an optional water-cooling system, enabling faster transitions to subsequent processes. The active water-cooling system includes an air blow system which uses compressed air to clean the cooling channels of the press platens. This way, dirt can be prevented from settling in the channels.
