Laboratory Platen Presses
LabTop Series Presses

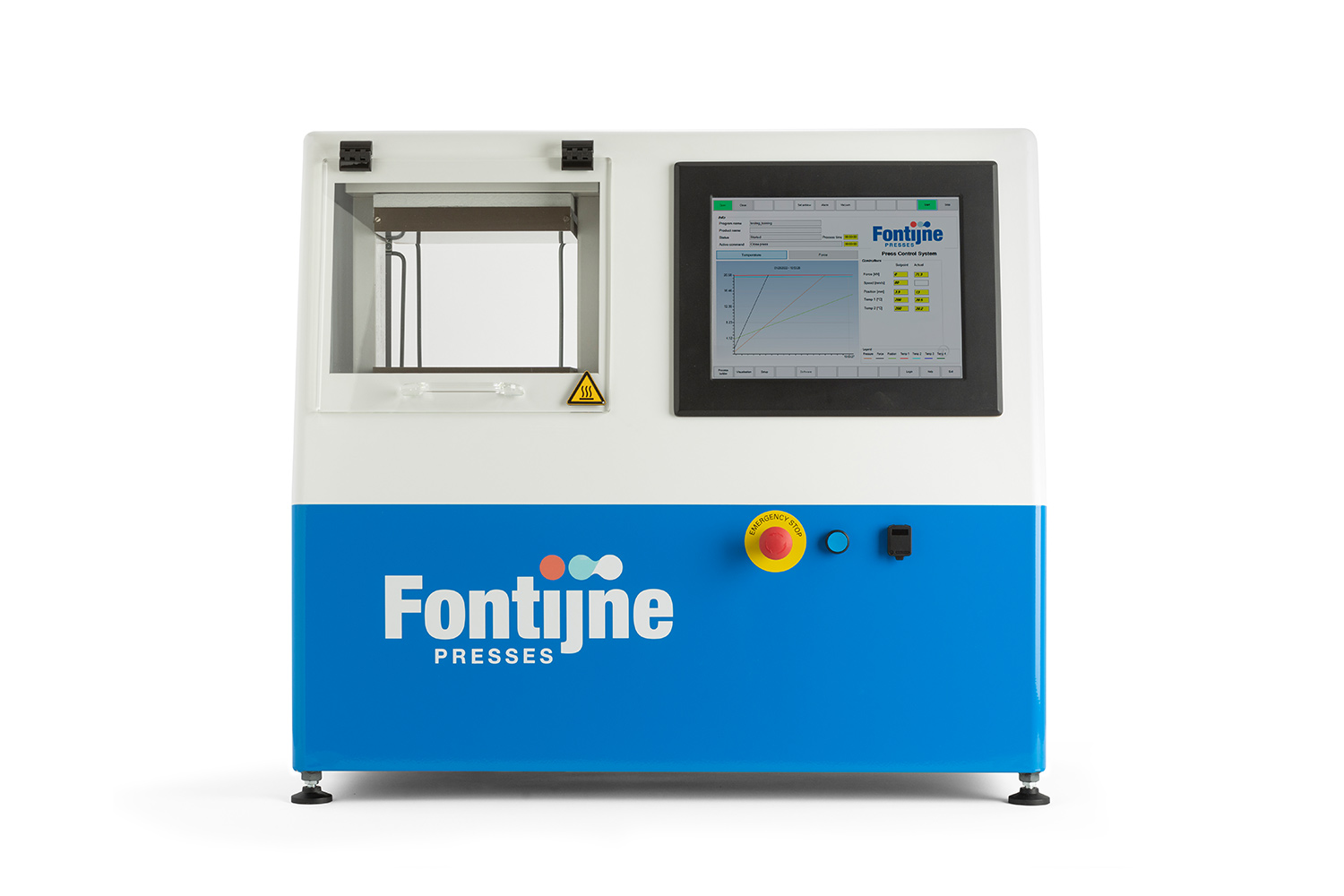

Fontijne Presses’ LabTop series is an automated hydraulic laboratory press that combines the compact benchtop footprint of the LabManual range with the advanced ProView control system. This integration delivers high levels of accuracy, repeatability, and process consistency, making the LabTop a preferred solution for sample preparation in both quality control and R&D environments.
Talk to an Instrumentation Specialist Today!
Easy Lab integration & Safe operation
Designed for easy laboratory integration, the LabTop operates on a standard 230 V connection and occupies minimal space. Its ergonomic construction, coupled with an intuitive touchscreen interface, simplifies operation and enhances user experience. The system also incorporates key safety features, including a fixed upper platen, emergency stop functionality, and a protective safety shield, ensuring safe operation in routine workflows.
The LabTop is available in 3 models based on the maximum pressing force and platen size.
LabTop 20
• 20 kN Maximum Pressing Force
• Temperatures up to 300 °C
• 200 × 200 mm platens
LabTop 150
• 150 kN Maximum Pressing Force
• Temperatures up to 300 °C
• 200 × 200 mm platens
LabTop 300
• 300 kN Maximum Pressing Force
• Temperatures up to 300 °C
• 250 × 250 mm platens
LabTop Series Presses
Product Features
ProView Touchscreen Control System
The LabTop series is equipped with the ProView control system, featuring a 15-inch touchscreen that enables precise control of temperature and pressing force. The large display provides clear visibility of process parameters and real-time cycle progress, allowing users to monitor and adjust conditions with confidence. An integrated automatic venting (degassing) function further enhances process control by periodically opening and closing the press at predefined intervals to release trapped gases during pressing cycles.
Optional Rapid Cooling Platform
For improved throughput, an optional automated water-cooling system is available to rapidly reduce platen temperature between cycles, enabling faster transitions to subsequent processes. This cooling system can be configured to comply with ASTM D4703, achieving controlled cooling rates of up to 15 °C/min when required. Additionally, chrome-plated platens minimize sample adhesion at elevated temperatures, supporting clean and consistent sample release.
