Ivium Modules & Accessories

Potentiostats & Battery Cyclers

Potentiostat Modules & Accessories

Product Overview

Ivium offers a range of optional modules that can be used with their potentiostats to extend their functionality.  This enables you to increase the maximum voltage or current of your potentiostat as well as connect your potentiostat to multiple cells for sequential measurements. There are also modules to add a bipotentiostat and allow you to connect multiple potentiostats to the same working electrode in your electrochemical cell.  Finally, communication modules are available for storing data or connecting remotely via Wi-Fi.

Current adjustment modules

Potentiostat Booster Modules

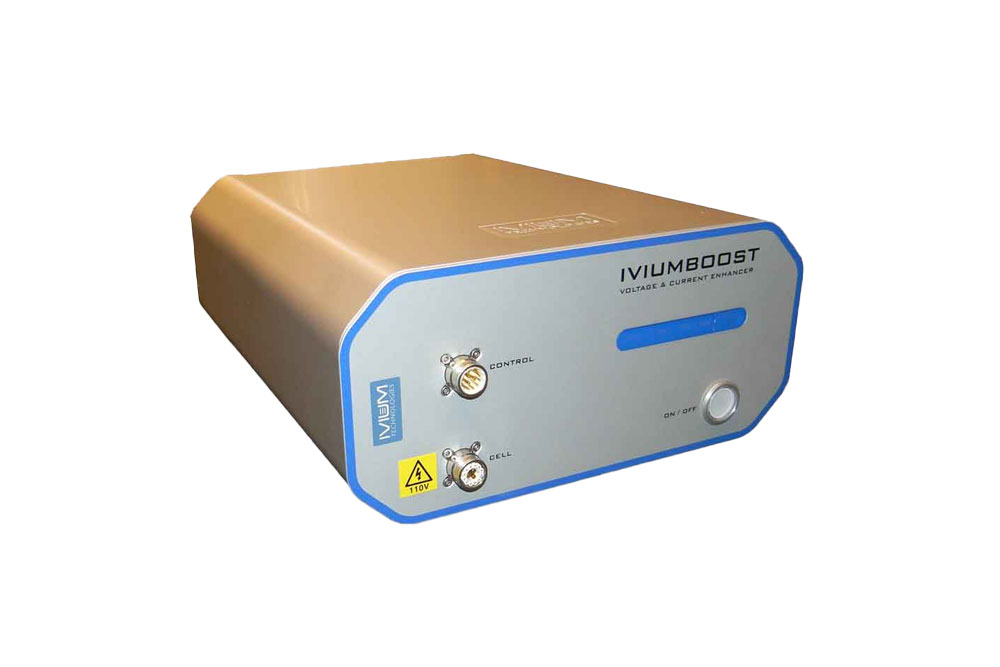

IviumBoost1001

The IviumBoost 1001 is designed to boost the compliance voltage of your existing Ivium potentiostat to 100V. Additional compliance voltage may be required in cell with highly resistive media like organic solvents or when the concentration of electrolyte salt is low.

Product Specifications
  • Compliance Voltage/Applied Voltage –±100 V
  • Compliance Current – ±0.6 A
  • Current ranges – defined by the controlling potentiostat
  • Max. EIS Bandwidth 100 kHz

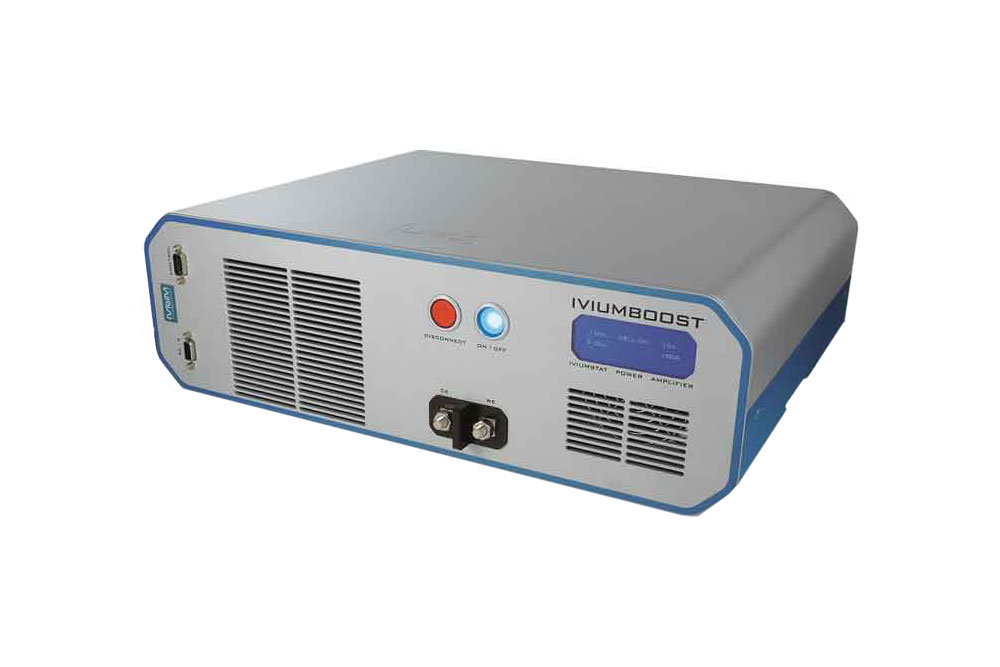

IviumBoost10012

The IviumBoost 10012 is designed to boost the compliance current of your existing Ivium potentiostat to 100 A. In addition the booster is stackable, so multiple boosters can be combined to increase the current further. High currents are required for high energy storage devices like batteries, fuel cells and electrolyzers, and flow batteries.

Product Specifications
  • Compliance Voltage/Applied Voltage – ±12 V/±10 V
  • Compliance Current – ±100 A
  • Current ranges – defined by the controlling potentiostat
  • Max. EIS Bandwidth 100 kHz

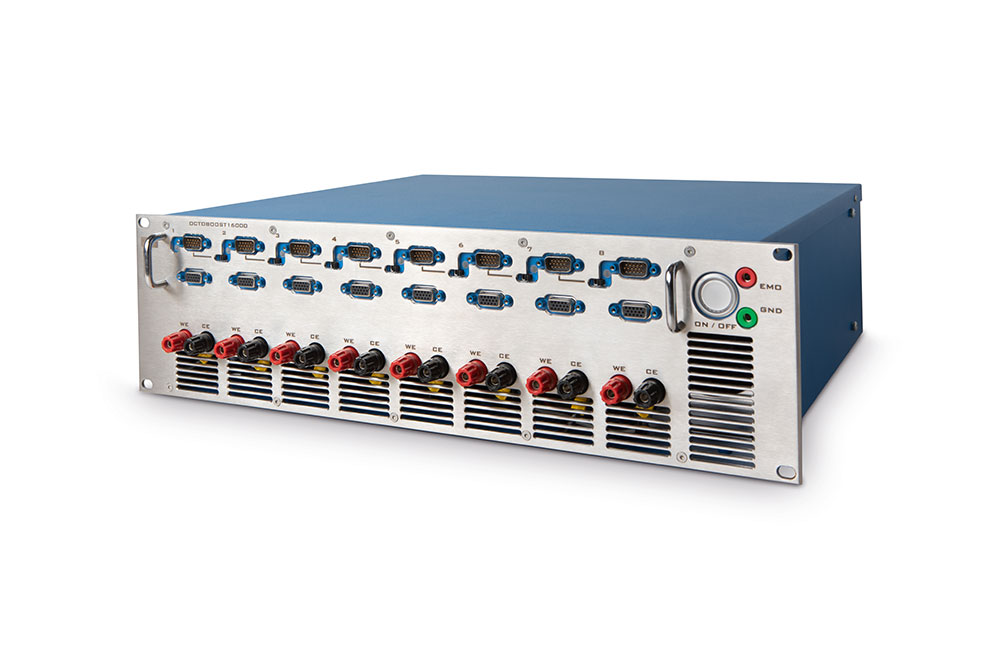

OctoBoost16000

The OctoBoost16000 is a multiple channel booster that can boost the current output of your existing Ivium potentiostat to 16 A. Adjacent channels can also be combined to further boost the current output reaching a maximum of 128A, if desired. The OctoBoost can be used with a multiple channel instrument like the OctoStat or Ivium-N-Stat or with multiple single channel instruments.

Product Specifications
  • 8 channels
  • Compliance Voltage/Applied Voltage – ±5 V/±5 V (-2V -+9V)
  • Compliance Current – ±16 A
  • Max. EIS Bandwidth 10 kHz
Channel expansion modules

Multiplexer Modules

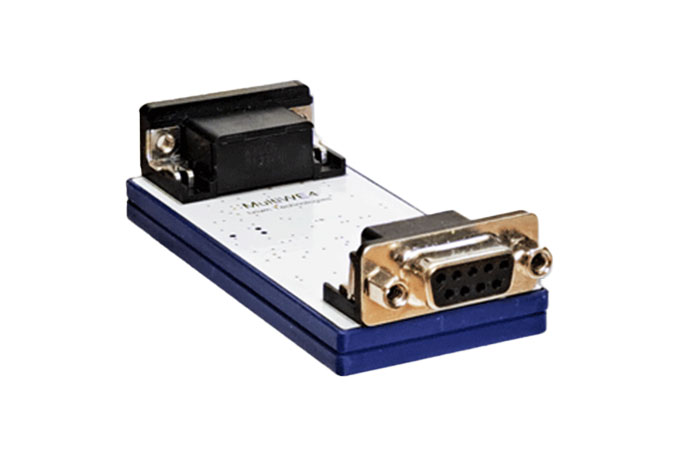

WE4

The WE4 works with your existing Ivium potentiostat to allow 4 simultaneous potentiostatic controlled measurements in the same cell. The module connects directly to your Ivium potentiostat cell connector and comes with a special cable to enable connection to the additional working electrodes. Simultaneous measurements can be made with Linear Sweep Voltammetry, Cyclic Voltammetry, Chronoamperometry and constant potential impedance where the same potential is applied to each electrode. Sequential measurements can be made with all techniques. Application areas include nanotechnology, sensor development, biotechnology and medical research.

Product Specifications
  • 4 simultaneous working electrodes channels
  • Compliance Voltage/Applied Voltage – ±10 V/±10 V
  • Compliance Current – ±2.5 mA
  • Current ranges – 10 nA – 1 mA

uMux

The uMux enables an Ivium potentiostat to be connected to 8 separate electrochemical cells sequentially. Each cell can have independent working, reference and counter electrodes. Upto 8 uMux modules can be used with one potentiostat expanding the number of cells to 64.

Product Specifications
  • 8-channel multiplexer for sequential measurements.

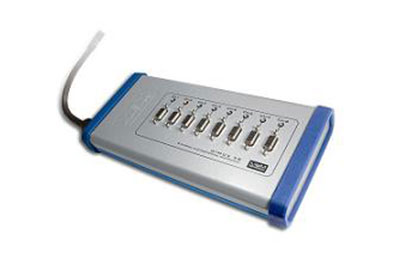

HiMux.XR

The HiMux.XR is similar to the uMux except that it maintains the working sense and reference leads connected to the cell to avoid large current spikes when switching the active channel. Up to 8 HiMux modules can be combined with a single potentiostat, connecting 64 cells.

Product Specifications
  • 8-channel multiplexer for sequential measurements.
  • Maximum Voltage – 20 V
  • Maximum Current – 5 A

Talk to an Electrochemical Expert Today!

functionality expansion modules

Functionality Modules

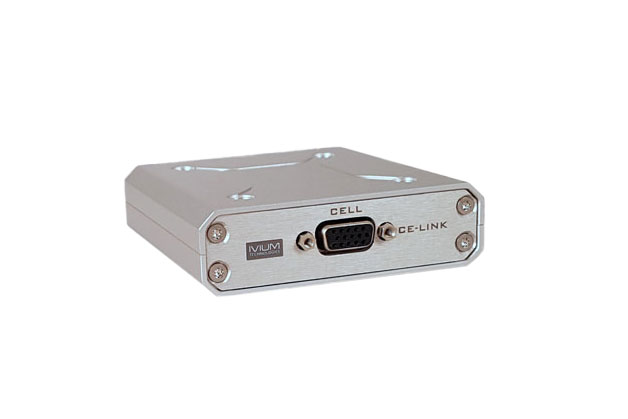

CE Link

The CE link allows for 2 potentiostats to be connected to a shared counter electrode without galvanic isolation. This is particularly useful when making a bipotentiostat out of 2 Ivium potentiostats as well as hydrogen permeation measurements with the Devanathan method. In a bipotentiostat configuration, the maximum current capability of each potentiostat is available (up to 5A).

Product Specifications
  • Maximum Voltage – 10 V
  • Maximum Current – 5 A
  • Bandwidth – 5 kHz

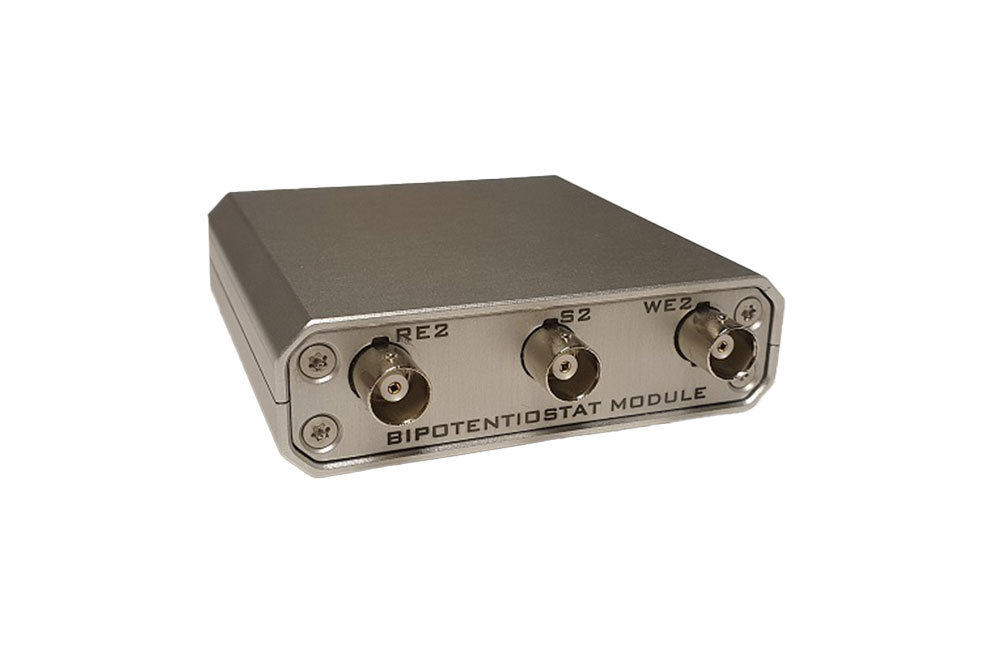

External Bipotentiostat

The external Bipotentiostat module creates a bipotentiostat from your existing Ivium potentiostat providing the potentiostat has a 15-pin peripheral port. The second working electrode can either be set at a fixed potential or the potential can be scanned at a fixed offset with respect to the main working electrode.

Product Specifications
  • Maximum voltage 2 V WRT to working electrode
  • Maximum current 30 mA

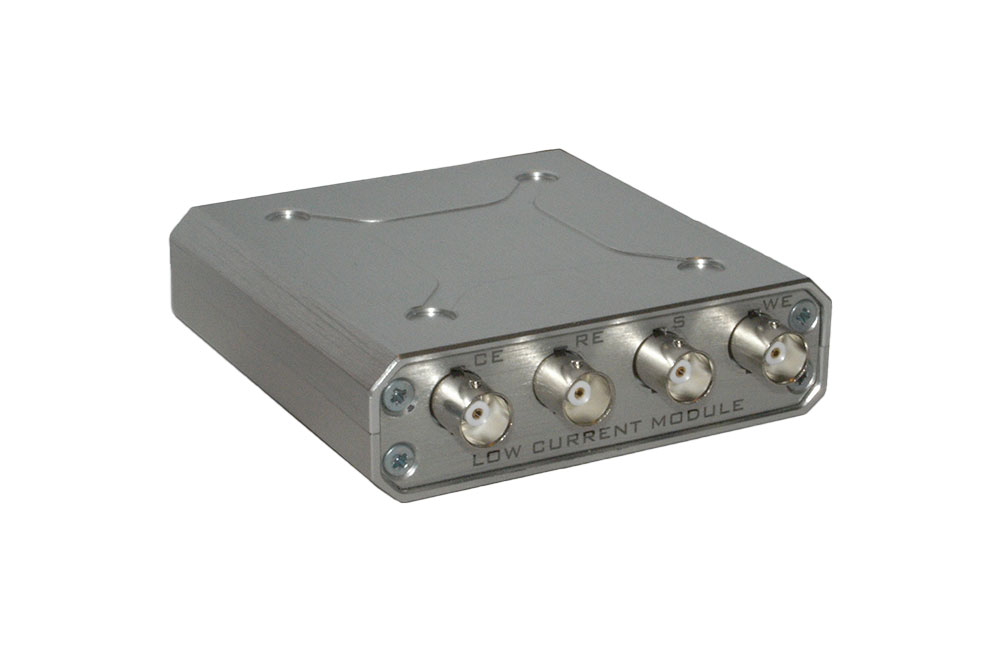

Low Current Module

The low current module extends the low current measuring capability of your existing Ivium potentiostat by adding 3 additional low current ranges.

Product Specifications
  • Maximum Voltage 10 V
  • Maximum current 100 mA
Communication/Data Storage Modules

Communication Modules

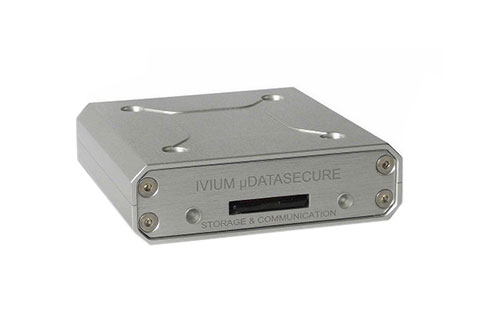

µDataSecure

The µDataSecure is a smaller version of the DataSecure data storage module. µDataSecure stores your experimental data independently of the controlling PC. It has memory for a large number of data points. If your PC gets disconnected either intentionally or unexpectedly, the µDataSecure allows your experiment to continue running to completion. The data can be retrieved subsequently.

Product Specifications
  • Up to 1,000,000,000 data points stored independent of the computer
  • Connection -LAN/USB

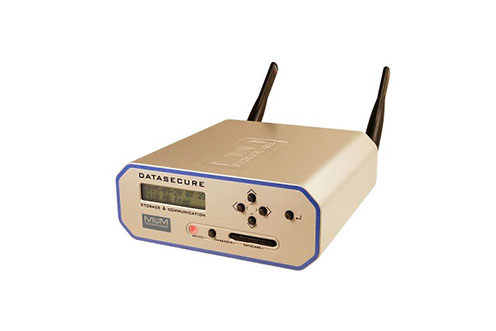

DataSecure

DataSecure stores your experimental data independently of the controlling PC. It has memory for a large number of data points. If your PC gets disconnected either intentionally or unexpectedly, the DataSecure allows your experiment to continue running to completion. The data can be retrieved subsequently.

Product Specifications
  • Up to 1,000,000,000 data points stored independent of the computer
  • Connection -LAN/USB/Wifi

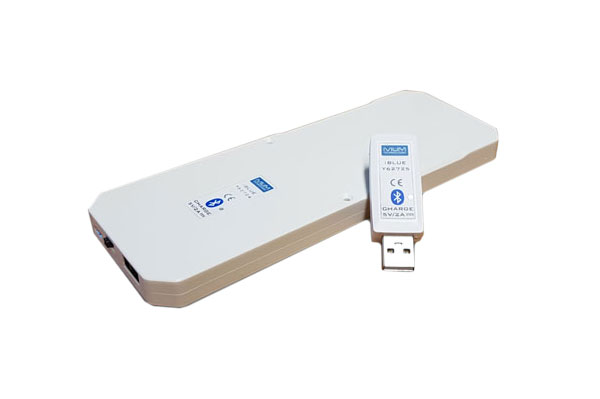

iBlue

The iBlue is a battery pack with integrated Bluetooth connection. Your Ivium potentiostat is plugged into the USB port and the provided Bluetooth dongle allows wireless connection to your computer. The battery pack incorporated into the iBlue can power the PocketStat2 making a truly portable system.

Product Specifications
  • Bluetooth 5.0
  • Up to 5 hours of continuous usage on a single charge.
assorted accessories

Additional Accessories

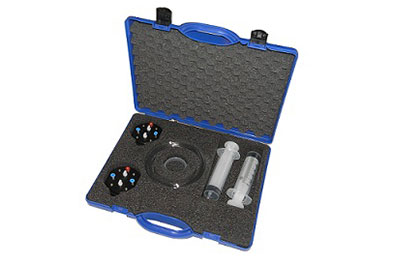

MCF cell (Magnetic Clamping Flat Cell)

The MCF cell is a corrosion and coating measurement cell kit for flat steel samples.  A soft silicone rubber seal ensures that the test solution stays inside the cell for predictable results.  It can be mounted in horizontal or vertical situations making it suitable for field measurements on coated steel structures like bridges.  The MCK cell kit contains 2 magnetic cells which can be used on structures where access to the underlying metal surface is restricted or unavailable.

Product Specifications

MCF cell dimensions:

  • Diameter: 75 mm
  • Height: 30 mm
  • Weight: 150 g

Electrolyte Compartment:

  • Area: 12.5 cm2
  • Volume: 12.5 cm3

Materials of construction:

  • MCF cell: POM
  • Electrode: Steel 316L

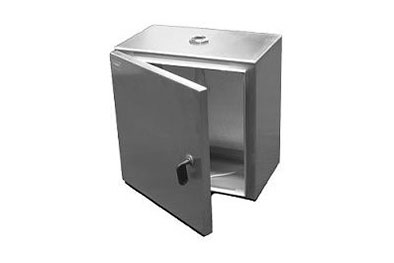

Faraday Cage

The Faraday cage is ideal shielding electrical noise when making measurements on low current, electrochemical systems like coated metal surfaces and sensors.

Product Specifications
  • Material: AISI 304 Stainless steel
  • Thickness: 1.2 mm
  • Size: 360 x 360 x 240 mm (external)
  • Weight: 8.3 kg
  • Cable hole: 28 mm, lined with stainless steel wire mesh
  • Door: Closed on Beryllium spring strip all round

ModuLight

The ModuLight is a programmable light source for use in investigating photovoltaic devices, such as solar cells. Full characterization of the solar cell is possible and includes IV curves as a function of the light intensity, Intensity Modulated Photo-current and Photo-voltage Spectroscopy, IMVS/IMPS, and solar cell modelling. Modulight works in combination with EIS-enabled Ivium potentiostats with an auxiliary Input/Output port.

Want to learn more? Talk to an electrochemical specialist today:

Ivium Modules

Communication Module Compatibility Chart

uDataSecure DataSecure iBlue
Potentiostats
Vertex.One
Vertex.C
Vertex
pocketSTAT2
CompactStat
IviumStat
XP
Ivium-n-Stat Modules
sModule
dModule
Battery Cyclers
OctoStat Integrated
IviCycle Integrated
Ivium Modules

Functionality Module Compatibility Chart

CE Link External Bipotentiostat Low Current Module
Potentiostats
Vertex.One
Vertex.C
Vertex Not compatible with the 20V1A, 50V1A, 10A, 20A, or 20V models Not compatible with the 20A model Not compatible with the 10A or 20A models
pocketSTAT2 Not compatible with low current model Not compatible with low current model
CompactStat Not compatible with h20250 or h10030 models
IviumStat
XP Not compatible with 10A model
Ivium-n-Stat Modules
sModule Not compatible with 10A, 20A, 2A, or 1A modules Not compatible with 20A or 1A modules Not compatible with 10A or 20A modules
dModule Not compatible with 1A module
Battery Cyclers
OctoStat
IviCycle
Ivium Modules

Multiplexer Compatibility Chart

WE4 uMUX HiMUX.XR
Potentiostats
Vertex.One
Vertex.C
Vertex Not compatible with the 10A or 20A models Not compatible with the 10A or 20A models Not compatible with the 10A or 20A models
pocketSTAT2 Not compatible with low current model Not compatible with low current model Not compatible with low current model
CompactStat Not compatible with h10030 model Not compatible with h10030 model
IviumStat Not compatible with XRe model Not compatible with XRe model
XP Not compatible with 10A model
Ivium-n-Stat Modules
sModule Not compatible with 1A, 10A, or 20A modules Not compatible with 10A or 20A modules Not compatible with 10A or 20A modules
dModule
Battery Cyclers
OctoStat
IviCycle
Ivium Modules

Booster Compatibility Chart

IviumBoost1001 IviumBoost10012 OctoBoost16000
Potentiostats
Vertex.One
Vertex.C
Vertex Not compatible with the .1A or 20Amodels Not compatible with the .1A or 20A models Not compatible with the .1A or 20A models
pocketSTAT2
CompactStat Not compatible with h10030 model Not compatible with h10030 or h20250 models Not compatible with h10030 or h20250 models
IviumStat
XP Not compatible with XP20 or XP10 models
Ivium-n-Stat Modules
sModule Not compatible with 20A module Not compatible with 20A module Not compatible with 20A module
dModule
Battery Cyclers
OctoStat
IviCycle
